Description

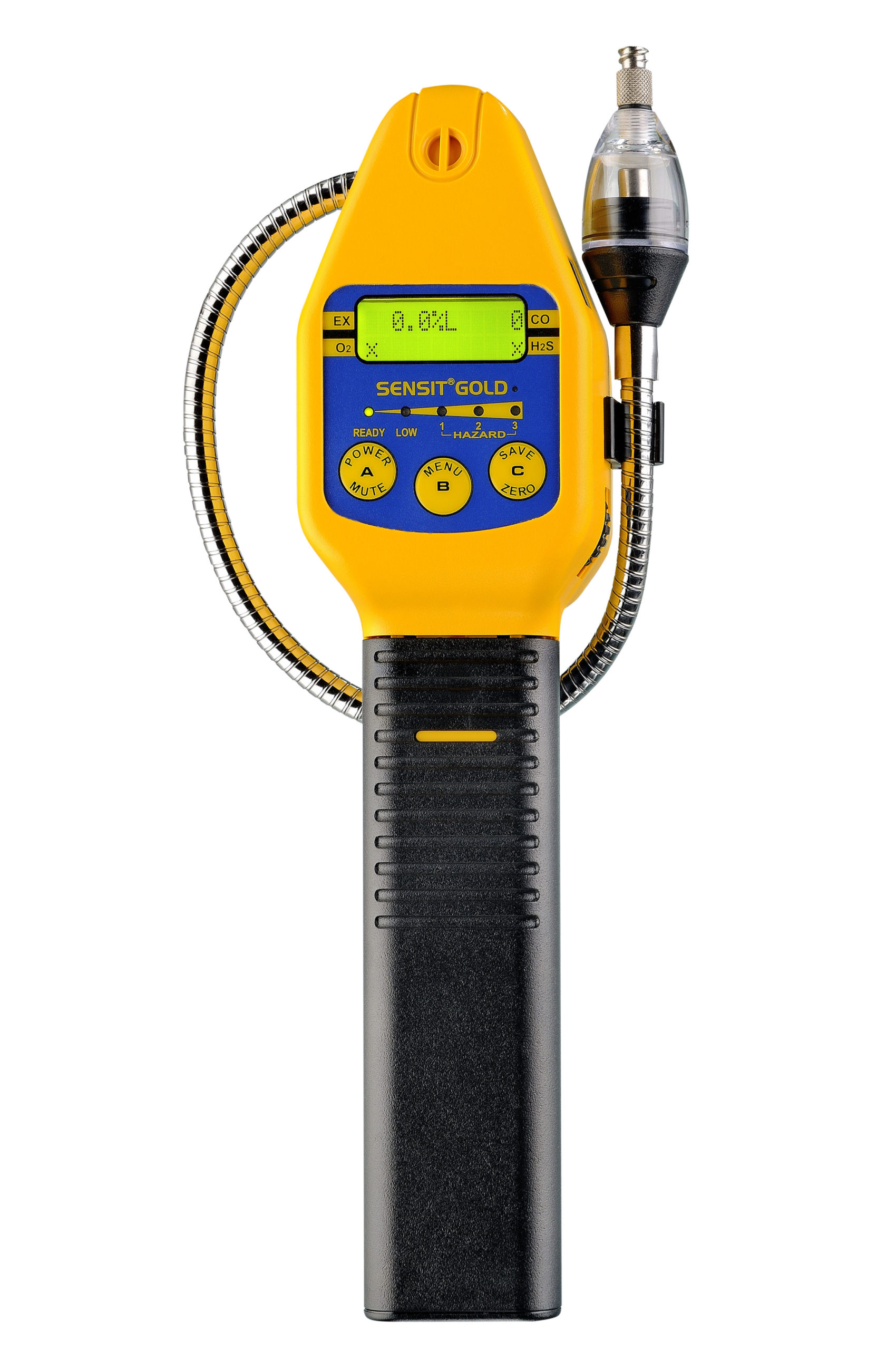

SENSIT® GOLD 100 is a lightweight, handheld gas leak detector and multi-gas constrained area sensor with increased capabilities for in-field use.
SENSIT® GOLD 100 measures and identifies natural gas or propane gas leaks and offers safety from potentially dangerous gas conditions.
The sensor meets Gas Pipe Purging NFPA 54 National Fuel Code.
You can select a model that will work with inert gas and oxygen-free uses.
SENSIT® GOLD 100 is:
- Reliable and Exact in Measurements
- Sturdy and made for In-Field Use
- Easy to Use
- Simple to Maintain
- Made in the USA
Applications
- Combustible Gas Leak Detection
- Gas Leak Survey
- Underground Leak Pinpointing
- Carbon Monoxide Investigations
- Confined Space Monitoring
- Combustible Gas Measurements
- Pipeline Purging (NFPA 54 Compliant)
- Method 21 Emissions Testing
- Inert Gas Operations
Partial List of Gases Sensed
- Butane
- Carbon Monoxide
- Gasoline
- Hydrogen Sulfide
- Methane
- Natural Gas
- Oxygen
- Propane
Технические характеристики
Specs
PRODUCT SPECIFICATIONS
Size: 11.5 x 3 x 2.32 (29.2 x 7.6 x 5.9 cm)
Weight: 1.2 lb. (0.5 kg)
Operational Temp: 0 to 120 F (-17.78 to 48.9 C)
Battery Life: Alkaline: Approximately 12 hrs. Continuous
SENSOR SPECIFICATIONS
| TYPE | RESOLUTION | RANGE | ACCURACY |
| LEAK | N/A | 10-50,000 ppm | N/A |
| PPM* | 1 or 10 ppm | 0-2,000 ppm | ±,10% |
| LEL | 0.1% | 0-100% LEL | ±,10% |
| % NAT GAS | 0.1% | 5-100% GAS | ±,5% |
| O2 | 0.1% | 0-25% | ±,.0.2% or 10%** |
| CO | 1 ppm | 0-2000 ppm | ±,.5 ppm or 5%** |
| H2S | 1 ppm | 0-100 ppm | ±,2 ppm or 5%** |
| HCN | 1 ppm | 0-30 ppm | ±,1 ppm or 2.5%** |
*PPM Optional ** Whichever is greater
