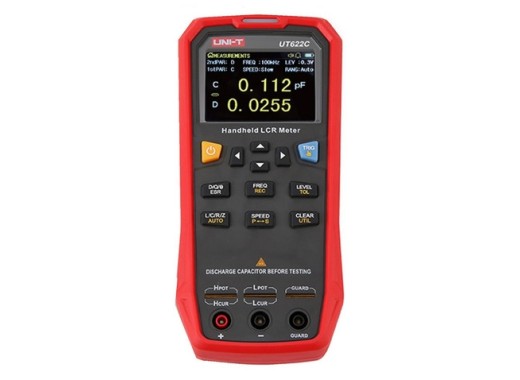

The UNI-T UT622C is a handheld LCR meter with an accuracy of 0.1% and a very high measurement speed of 20 samples/second. Also, the meter has multiple test frequencies with a maximum test frequency of 100 kHz. Moreover, this LCR meter features a clear, intuitive, and colored 2.8-inch TFT LCD display which consists of 99999 counts. Furthermore, the UT622C has two power supply methods: a battery power supply and a USB power adapter power supply. Lastly, the UT622C has multiple measurement modes including a recording mode which can be used for data statistics and a tolerance mode which can be used for component sorting.
Model overview Model UT622A UT622C UT622E Max. test frequency 10 kHz 100 kHz 100 kHz DCR No No Yes Price 149 €149.00 Excl. VAT 205 €205.00 Excl. VAT 269 €269.00 Excl. VAT Specifications Testfrequencies100/120/1k/10k/100k Hz Resistance range0.0000 — 9.9999 M Capacitance range0.00 pF — 99.999 mF Induction range0.00 uH — 99.999 H Measurement parametersPrimary: L/C/R/Z
Secondary: D/Q/Θ/ESR Tolerance range1% — 20% Display2.8′ TFT LCD (99999 counts) Power supply3.7 V lithium polymer battery Max. measurement speed20 measurements/sec Dimensions93 x 192 x 44 mm Weight420 g Accessories
The UT622C is delivered including:
- Four-terminal kelvin test leads
- Short circuit board
- USB cable
