Features:
- Total Power: 750 W
- Max Volts: 80 V
- Max Amps: 50 A
- Up to 80V or 50A per output limited by power curve
- Low ripple and noise of <,3mV rms at full power
- High setting resolution and metering down to 1mV
- Analog control interface, LAN/LXI, USB, & (GPIB, optional on QPX750SP) on P versions
- Bench or System use with rear and front terminals

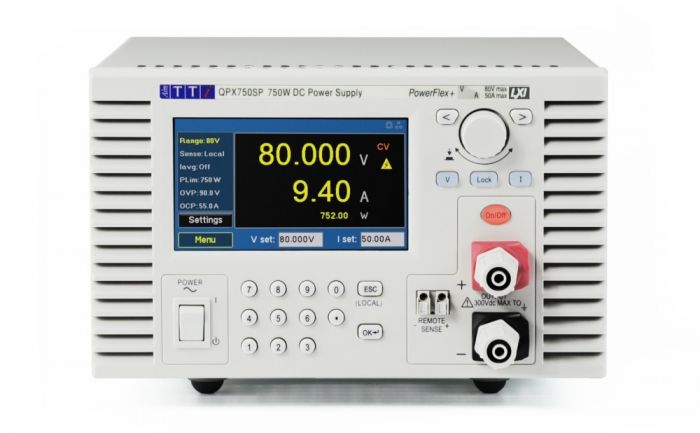

The QPX750SP is a single output DC power supply with a maximum output power of 750 watts. It is suited to both bench-top and system applications.
QPX series laboratory power supplies are designed to provide flexibility in the choice of voltage and current so as to meet multiple diverse applications. Voltages up to 80V and currents up to 50A are available within a defined power envelope.
Unlike most power supplies of this power level, the QPX series is well suited to bench top applications in addition to system use.
POWERFLEX & POWERFLEX+
A conventional PSU has a fixed current limit giving a power capability that reduces directly with the output voltage.
The Aim-TTi PowerFlex and PowerFlex+ regulation systems enable higher currents to be generated at lower voltages within an overall power limit envelope.
For PowerFlex+ models the output can provide more than six times the current of a conventional PSU of the same maximum voltage and power. For PowerFlex models the increase is three times.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Current | 50 A |
| Voltage | 80 V |
| Power | 750 W |
