Custom probe tips design for the AutoProbe 100 and 200, 300 and 400 and 250 and 200 systems.

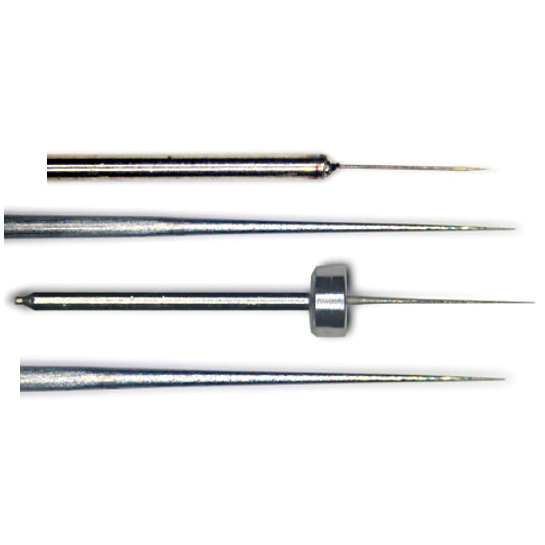

GF341: AutoProbe 100 and 200 systems. Nickel tube shank with a diameter of 0.508mm and a tungsten tip with a diameter of 76um. Tip radius is 0.5um with a 13 deg. taper angle for maximum lifetime. Nickel shank ~33.25mm long. Tungsten tip ~35.5mm with the tungsten whisker starting 2.3mm from the tip.
GF342: AutoProbe 100 and 200 systems. All tungsten design with a tip radius of 0.5um and a 10-13 deg. taper angle for maximum life time. Shank diameter is 0.508mm.
GF343: AutoProbe 300 and 400 system for in situ probe tip exchange systems. Tungsten tip with stainless steel shank, tip radius is 0.5um with an 8-10 deg. taper angle.
GF344: AutoProbe 250 and 200 systems. All-tungsten design with a 0.508mm shank diameter. The tip radius better than 0.5um with a taper of 6 deg. taper angle for greater precision.
Технические характеристики
GF341
