P/N: PSMR19-3-3-SS Key Specs
Item

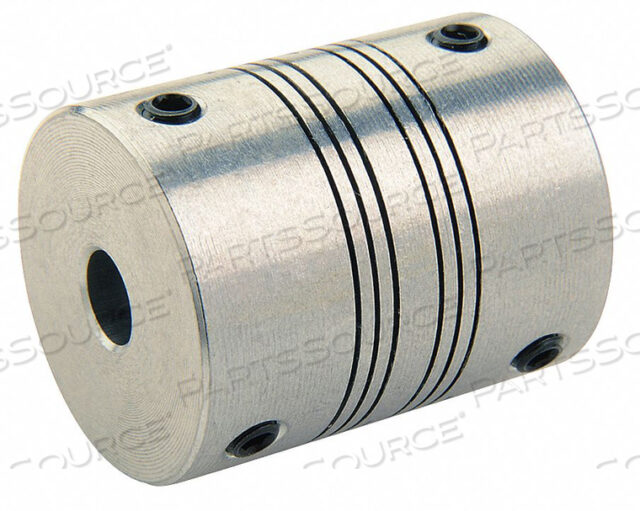

MOTIONCONTROL COUPLING SET SCREW 3MMX3MM
OEM
Ruland Manufacturing Inc.
OEM #
PSMR19-3-3-SS
Condition
New OEM Original
Returnable
No
Bore Dia.
3mm x 3mm
Clearance Dia. (In.)
1.0 in
Clearance Dia. (mm)
25.4
Finish
Bright
Item — Motion Control Couplings
Motion Control Coupling
Length through Bore
9.8 mm
Material — Couplings
Stainless Steel
Max. Angular Misalignment
3 Degrees
Max. Axial Misalignment (In.)
+/-0.005
Max. Bore (mm)
3 mm
Max. Parallel Misalignment (In.)
0.008 in
Max. RPM
6,000 RPM
Max. Temp.
350 Degrees F
Min. Bore (mm)
3
Outside Dia.
19.1 mm
Overall Length
22.9 mm
Rated Torque
35 in-lb
Screw Size
M4
Screw Type
Set Screw
Setscrew Location
2 (120 Degrees )
Shaft Locking Type — Couplings
1 Piece Set Screw
Size
PSMR19
Torsional Stiffness (Deg./In.-Lbs.)
0.085
