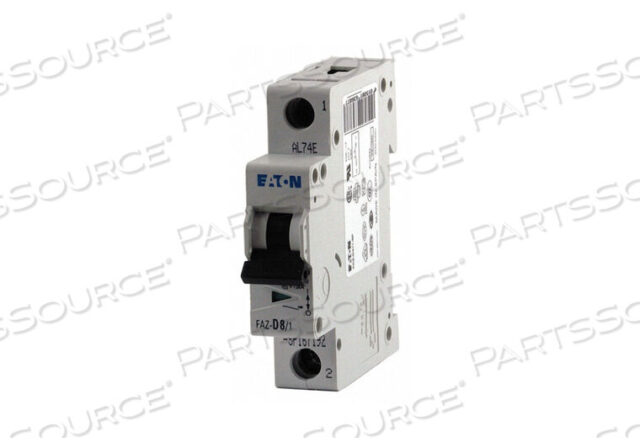

P/N: FAZ-D8/1-SP Key Specs
Item
IEC SUPP PROTECTOR 8A 277/480VAC 1P
OEM
Eaton
OEM #
FAZ-D8/1-SP
Condition
New OEM Original
Returnable
No
AC Voltage Rating
277/480V AC
Amps
8 A
Application
Appliances and Some Motors, Motors, Business Equipment, Control Circuits and Coils, PLC Wiring, Industrial, Lighting, Pilot Devices, Small Transformers, Transformers and Power Supplies
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
DIN Rail
Curve Type
D
DC Voltage Rating
48V DC
Depth
1 in
Length
1 in
Max Air Rating
15kA at 240/415V AC
Max Wire Size
4 AWG
Meets UL Type
UL 1077
Min Wire Size
18 AWG
Number of Poles
1
Phase
1
Series
FAZ
Standards
CSA C22.2 No. 235, IEC 60947-2, UL 1077
Terminal Connection
Lug
Trip Type
Thermal Magnetic
Width
1 in
