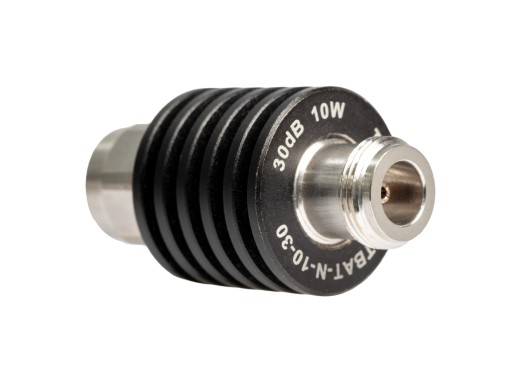

Одинарные аттенюаторы Tekbox TBATT от N-гнездо до N-папа

The Tekbox TBATT single attenuators are attenuators with a power ranging from 10W-100W and a attenuation ranging from 3dB-30dB. These attenuators have N-male to N-female RF connector and a frequency range of 3GHz. The tolerance of the attenuators depends on the attenuation, and ranges between &plusmn,0.5dB and &plusmn,1dB. The attenuators with a power of 10W have a VSWR of

Model overview We offer multiple attenuators from Tekbox with different power and attenuation combinations: Model Power Attenuation Price TBATT-N-10-3 10 W 3 dB ±0.5 dB 45.45 €45.45 Excl. VAT TBATT-N-10-6 10 W 6 dB ±0.5 dB 45.45 €45.45 Excl. VAT TBATT-N-10-10 10 W 10 dB ±0.5 dB 45.45 €45.45 Excl. VAT TBATT-N-10-20 10 W 20 dB ±0.8 dB 45.45 €45.45 Excl. VAT TBATT-N-10-30 10 W 30 dB ±1 dB 45.45 €45.45 Excl. VAT TBATT-N-25-3 25 W 3 dB ±0.5 dB 73.55 €73.55 Excl. VAT TBATT-N-25-6 25 W 6 dB ±0.5 dB 73.55 €73.55 Excl. VAT TBATT-N-25-10 25 W 10 dB ±0.5 dB 73.55 €73.55 Excl. VAT TBATT-N-25-20 25 W 20 dB ±0.8 dB 73.55 €73.55 Excl. VAT TBATT-N-25-30 25 W 30 dB ±1 dB 73.55 €73.55 Excl. VAT TBATT-N-50-3 50 W 3 dB ±0.5 dB 106.61 €106.61 Excl. VAT TBATT-N-50-6 50 W 6 dB ±0.5 dB 106.61 €106.61 Excl. VAT TBATT-N-50-10 50 W 10 dB ±0.5 dB 106.61 €106.61 Excl. VAT TBATT-N-50-20 50 W 20 dB ±0.8 dB 106.61 €106.61 Excl. VAT TBATT-N-50-30 50 W 30 dB ±1 dB 106.61 €106.61 Excl. VAT TBATT-N-100-3 100 W 3 dB ±0.5 dB 227.27 €227.27 Excl. VAT TBATT-N-100-6 100 W 6 dB ±0.5 dB 227.27 €227.27 Excl. VAT TBATT-N-100-10 100 W 10 dB ±0.5 dB 227.27 €227.27 Excl. VAT TBATT-N-100-20 100 W 20 dB ±0.8 dB 227.27 €227.27 Excl. VAT TBATT-N-100-30 100 W 30 dB ±1 dB 227.27 €227.27 Excl. VAT

Технические характеристики
