The Mitutoyo Vernier depth gage features hardened, micro-lapped measuring faces and base for improved accuracy and wear resistance. The depth gage is constructed of hardened stainless steel with a satin chrome finish for protection and easy reading. Wider extension bases (up to 450mm range models) are available if needed.
- Available in Metric and Inch models
- Some models have a fine adjustment screw for precision measurements
- Raised sliding surfaces prevent defacement and wear of scale graduations
- Constructed of corrosion-resistant, hardened stainless steel
- Lock screw holds the slider in position for accurate measurement
- Most models are supplied in fitted plastic case, 18”/450mm and 24”/60mm models are supplied in a wooden case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Remarks: |
|---|
| Order No.: |
|---|

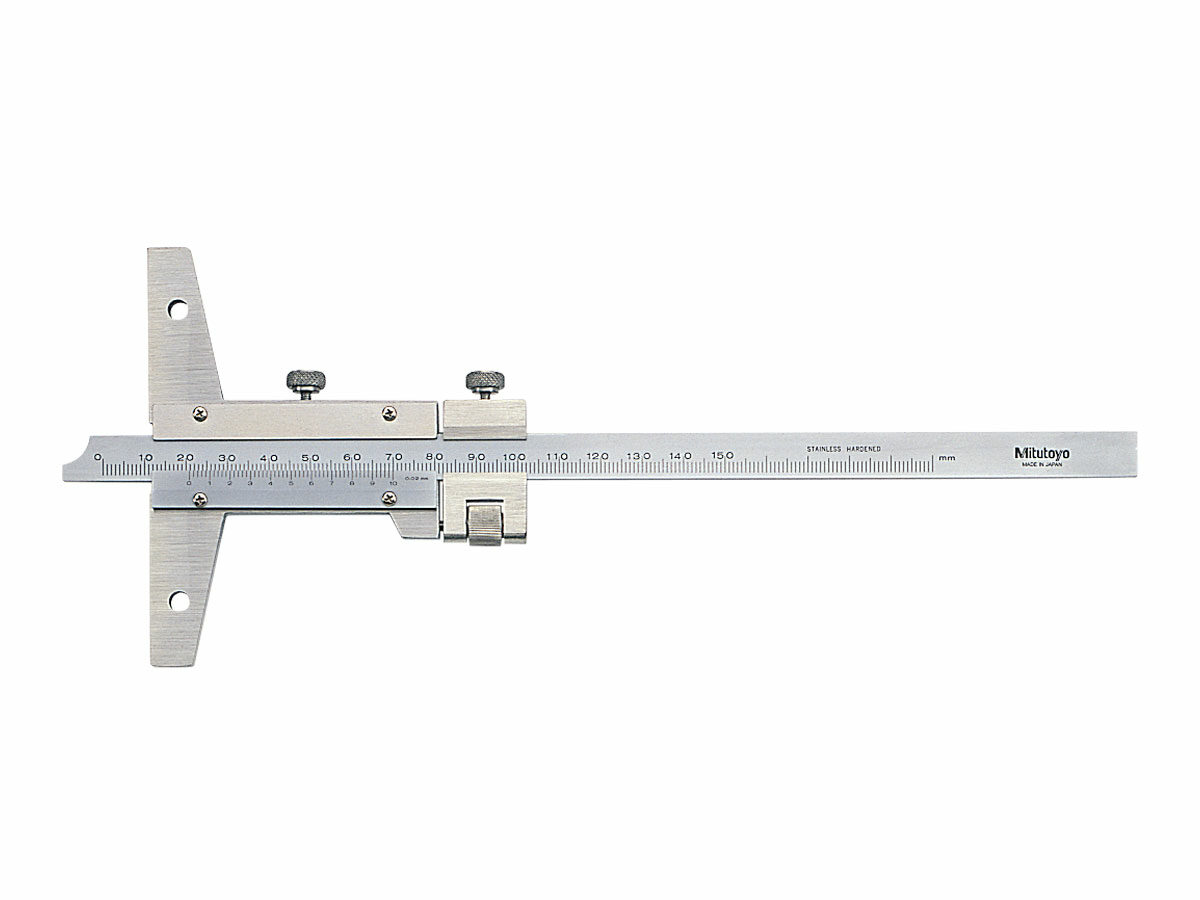

| 527-101 |  | Metric | 0-150mm | ±0.03mm | 280g | 0.02mm | with fine adjustment |
| 527-102 | — | Metric | 0-200mm | ±0.03mm | 300g | 0.02mm | with fine adjustment |
| 527-103 |  | Metric | 0-300mm | ±0.04mm | 350g | 0.02mm | with fine adjustment |
| 527-104 |  | Metric | 0-600mm | ±0.05mm | 1511g | 0.02mm | with fine adjustment |
| 527-105 | — | Metric | 0-1000mm | ±0.07mm | 1880g | 0.02mm | with fine adjustment |
| 527-111 | — | Inch | 0-6″ | ±.001″ | 280g | 0.001″ | with fine adjustment |
| 527-112 | — | Inch | 0-8″ | ±.001″ | 300g | 0.001″ | with fine adjustment |
| 527-113 | — | Inch | 0-12″ | ±.0015″ | 350g | 0.001″ | with fine adjustment |
| 527-114 |  | Inch | 0-24″ | ±.002″ | 1511g | 0.001″ | with fine adjustment |
| 527-115 |  | Inch | 0-40″ | ±.003″ | 1880g | 0.001″ | with fine adjustment |
| 527-121 | — | Metric | 0-150mm | ±0.03mm | 215g | 0.02mm | — |
| 527-122 | — | Metric | 0-200mm | ±0.03mm | 230g | 0.02mm | — |
| 527-123 | — | Metric | 0-300mm | ±0.04mm | 265g | 0.02mm | — |
| 527-201 | — | Metric | 0-150mm | ±0.05mm | 240g | 0.05mm | — |
| 527-202 | — | Metric | 0-200mm | ±0.05mm | 260g | 0.05mm | — |
| 527-203 | — | Metric | 0-30mm | ±0.08mm | 300g | 0.05mm | — |
| 527-204 | — | Metric | 0-600mm | ±0.10mm | 1511g | 0.05mm | — |
| 527-205 |  | Metric | 0-1000mm | ±0.15mm | 1880g | 0.05mm | — |
| 527-101 |
| 527-102 |
| 527-103 |
| 527-104 |
| 527-105 |
| 527-111 |
| 527-112 |
| 527-113 |
| 527-114 |
| 527-115 |
| 527-121 |
| 527-122 |
| 527-123 |
| 527-201 |
| 527-202 |
| 527-203 |
| 527-204 |
| 527-205 |
Технические характеристики
| Technology: | Mechanical |
|---|
