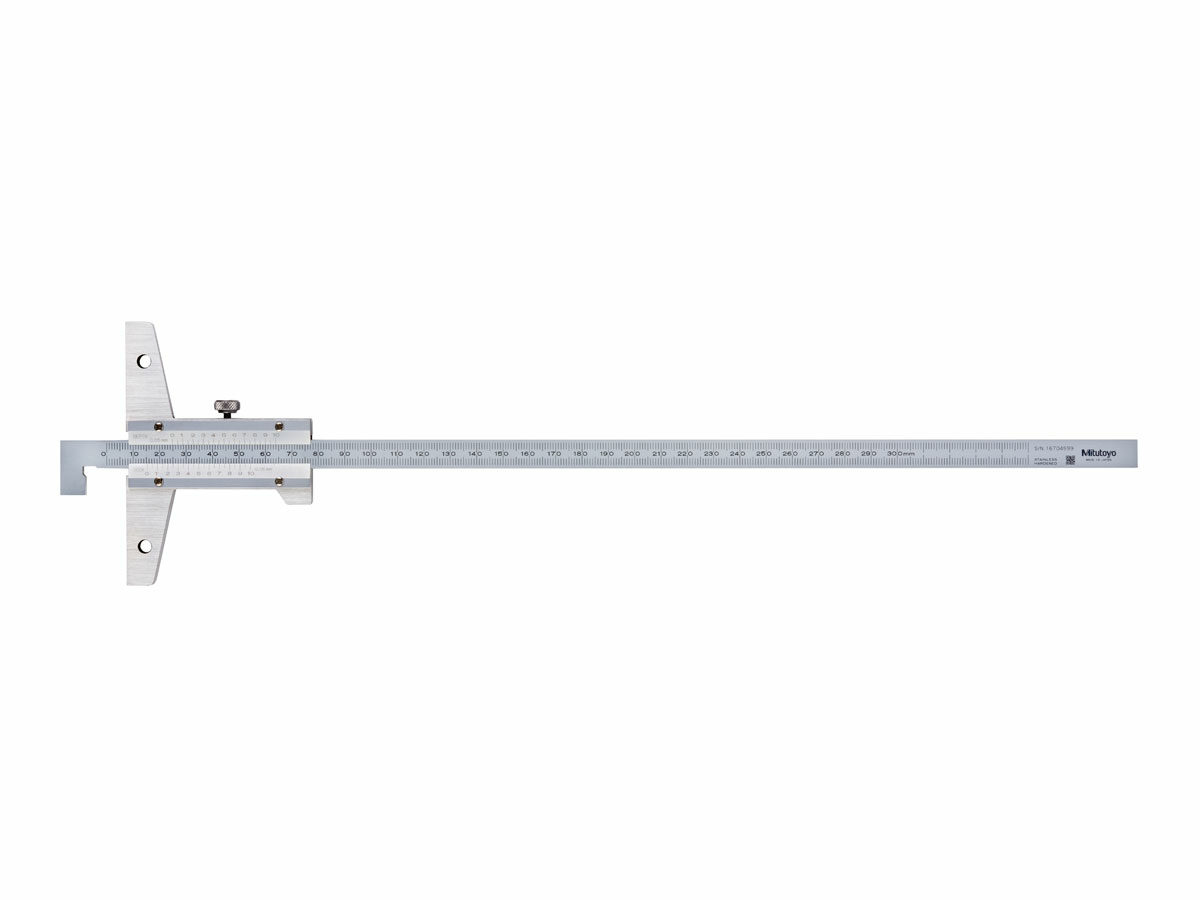

Нониусный глубиномер с крючковым концом

Глубиномер Mitutoyo Vernier Hook-End позволяет измерять глубину и толщину выступающего участка или линии в отверстии в дополнение к стандартным измерениям глубины.

The Mitutoyo Vernier hook end depth gage features a hook on the main scale that reaches underneath and measures the depth of projections in a recess or hole. The hook»s base is extremely flat, allowing for highly accurate thickness measurements of projections along with standard depth measurements. This depth gage is constructed of hardened stainless steel with micro-lapped measuring faces and base for improved accuracy and wear resistance. Wider extension bases (up to 450mm range models) are available if needed.

• Available in Metric and Inch models
• Some models have a fine adjustment screw for precision measurements
• Raised sliding surfaces prevent defacement and wear of scale graduations
• Constructed of corrosion-resistant, hardened stainless steel
• Lock screw holds the slider in position for accurate measurement
• Supplied with a fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Graduation:	Mass:	Remarks:

Order No.:

527-401		Metric	0-150mm	±0.05mm	0.05mm	240g	—
527-402		Metric	0-200mm	±0.05mm	0.05mm	240g	—
527-403	—	Metric	0-300mm	±0.08mm	0.05mm	270g	—
527-411	—	Metric	0-150mm	±0.03mm	0.02mm	280g	with fine adjustment
527-412	—	Metric	0-200mm	±0.03mm	0.02mm	300g	with fine adjustment
527-413	—	Metric	0-300mm	±0.04mm	0.02mm	350g	with fine adjustment
