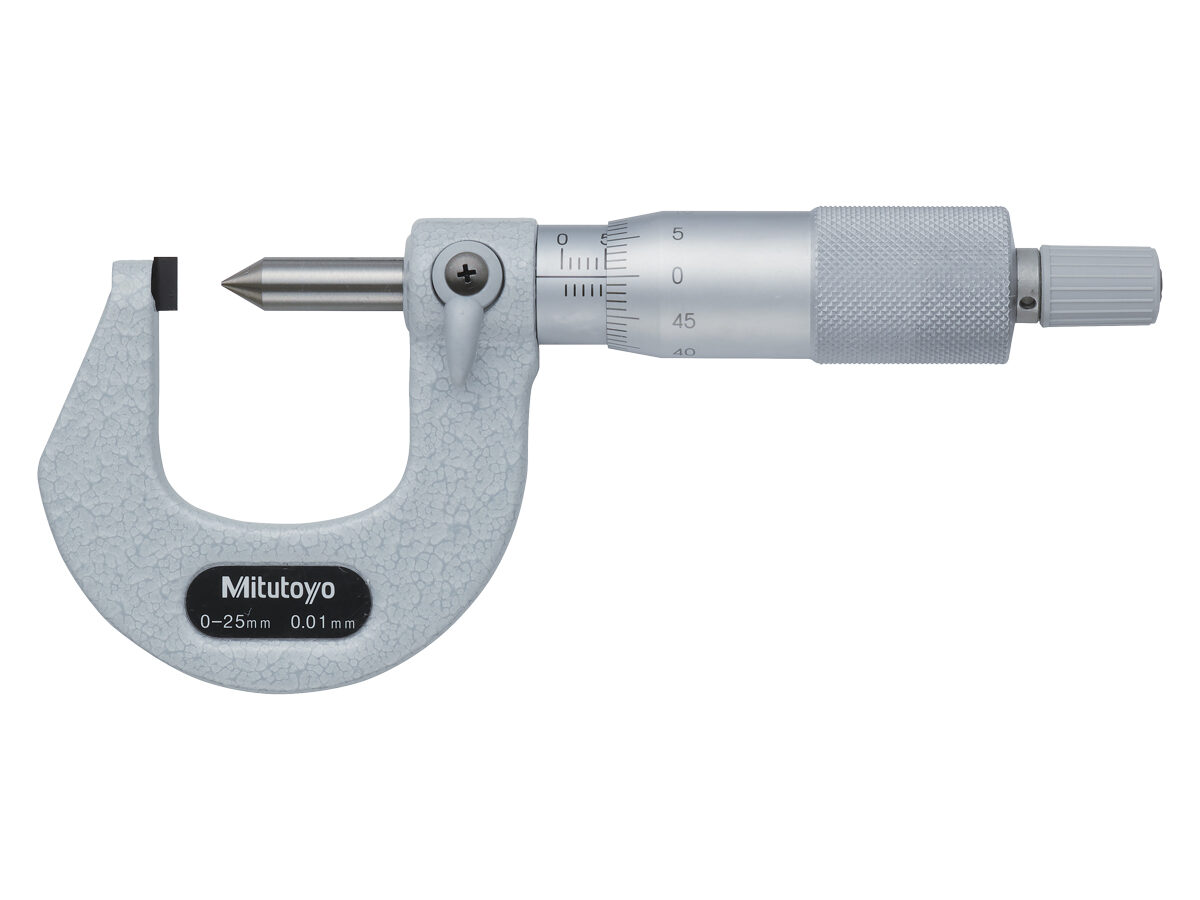

The Mitutoyo crimp height micrometer measures the contact height of a connector once crimped with a wire. The micrometer»s pointed spindle and blade anvil offer precise position for highly accurate measurements. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
- Vernier scale graduated to .001” on the thimble offers precise outer dimension measurements
- A spindle lock provides a secure locking of the measurement position for easier recording
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame is constructed of high-grade steel and has a baked enamel finish for durability
- Supplied in fitted plastic case
| Order No.: | Product Image: | Technology: | Units: | Range: | Accuracy: | SPC Output: | Ratchet/Thimble: | Mass: | Graduation: | |
|---|
| 112-401 |  | Mechanical | Metric | 0-25mm | ±3µm | No | Ratchet Stop | 165g | 0.010mm |
