The Chipquik SMD soldering practice kit is great for practising SMD soldering. There is also a stencil designed to work with the SMD soldering practice kit to apply solder paste. The reflow or vapour flow process can be tested in this way.
Components

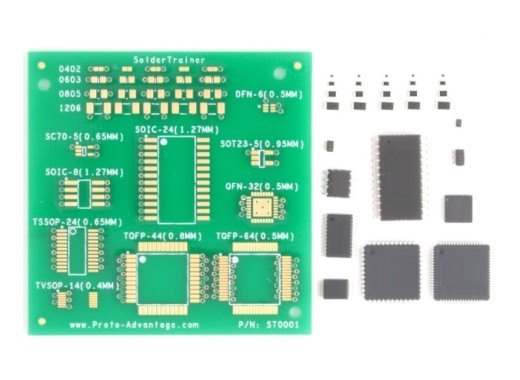

The Chipquik SMD Soldering Practice Kit will be delivered with 30 mount parts:
- 5x 0402 resistors
- 5x 0603 resistors
- 5x 0805 resistors
- 5x 1206
- 1x SOIC-8 (1.27mm pitch)
- 1x SOIC-24 (1.27mm pitch)
- 1x SOT23-5 (0.95mm pitch)
- 1x SC70-5 (0.65mm pitch)
- 1x DFN-6 (0.5mm pitch)
- 1x TVSOP-14 (0.4mm pitch)
- 1x TSSOP-24 (0.65mm pitch)
- 1x QFN-32 (0.5mm pitch)
- 1x TQFP-44 (0.8mm pitch)
- 1x TQFP-64 (0.5mm pitch)
