Additional Features:
- 2-Quadrant Source/Measure Unit for Functional Test (20 W)
- Voltage: Up to 20 V
- Current: Up to ±3 A
- Power: 20 W
Accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):
- Voltage, 20 V range: 0.025% + 1.8 mV
- Voltage, 6 V range: 0.025% + 600 µV
- Current, 3 A and 1 A ranges: 0.04% + 300 µA
- Current, 300 mA range: 0.03% + 150 µA
- Programming Speed: Output voltage can change in 10 µs or at 100 kHz into a resistive load
Accuracy (at 23°C ± 5°C):
- Voltage, 20 V range: 0.025% + 1.2 mV
- Current, 3 A range: 0.03% + 250 µA
- Current, 100 mA range: 0.025% + 10 µA
- Current, 10 µA range: 0.025% + 8 nA

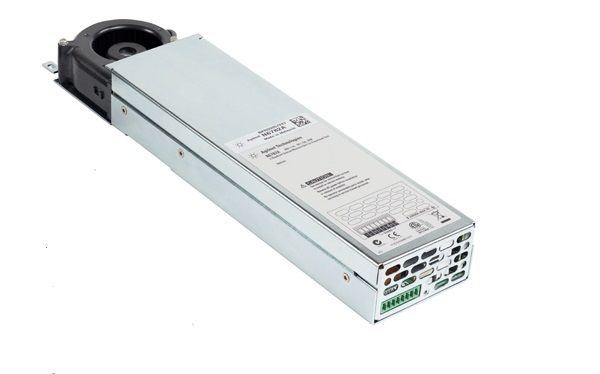

The Agilent N6782A is a source/measure unit (SMU) designed specifically for advanced functional testing of a device. The ability to modulate the output up to 100 kHz along with capability to source and sink current (2-quadrant operation) makes the Agilent N6782A a perfect fit for advanced functional test of a variety of devices such as DC/DC converters, power management units, power amplifiers, and power management ICs. The input stage of the DUT can be stimulated by the fast sourcing and waveform capabilities. While the output stage can be loaded down and measured with the electronic load capabilities, providing a total test solution.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 3 A |
| Voltage | 20 V |
| Power | 20 W |
