Additional Features:
- Total available output power: 600W
- Low-profile modular power system mainframe
- Ideal for ATE systems in R&D, design validation, and manufacturing
- Small size: up to four outputs in 1U of rack space
- Flexible, modular system: Lets you mix and match power levels and performance levels to optimize your investment
- Performance modules for critical test requirements
- Value modules for basic DC power requirements
- Fast command processing time and output speed to improve throughput
- Connect via GPIB, LAN, or USB
- Fully compliant to LXI Class C specification

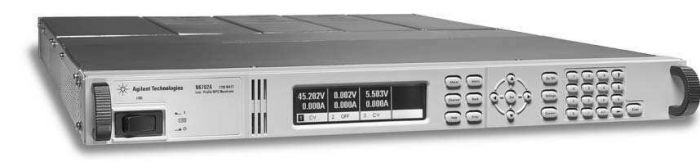

The Agilent N6701A is a 600 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 Agilent N6700 series DC power modules in any combination. Modules are ordered separately. The Agilent N6701A offers GPIB, LAN, and USB, interfaces standard, and LXI Class C compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20-300 W.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Power | 600 W |
