Features:
- Three or four high performance outputs each with full functionality
- Range switching gives variable voltage/current combinations
- Shared power mode provides double power from a single output
- Low output noise and ripple via linear final regulation
- High setting resolution of up to 1mV and 0.1mA
- Variable OVP and OCP trips on all outputs
- 50 setting memories per output plus 50 linked memories
- Selectable voltage tracking (isolated tracking)
- Selectable current meter averaging
- Switchable remote sense capability
- Graphic LCD provides simultaneous output metering
- Numeric or spin-wheel control of all parameters
- Individual or combined output on/off control with programmable delay sequencing
- 3U ½ rack or ¾ rack case for bench or rack mounting
Accessories:
- LAN-Ethernet with LXI
- LXI Compliance
- IVI Driver
- RS-232
- USB
Specifications:
- Voltage: 120 Volts
- Current: 20 Amps
- Power: 378 Watts
- O/P»s: 3

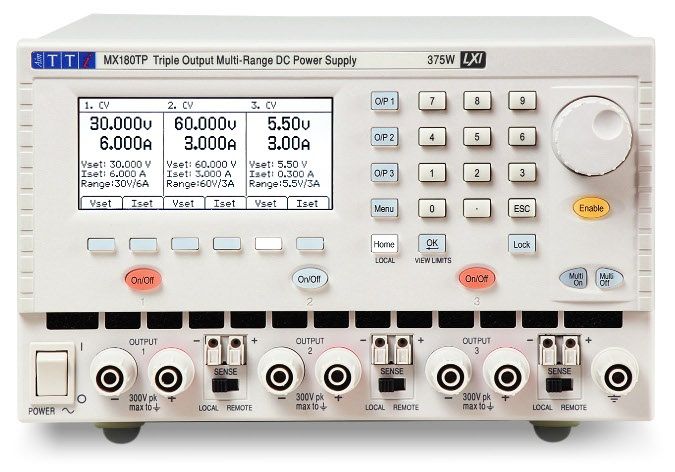

The MX180TP is a 120 V, 378 W, 20 A dc power supply from Thurlby Thandar Instruments. The MX series uses mixed mode regulation to provide up to 420W of power split across up to four outputs, this series differs from most other multi-output power supplies in offering full capabilities on all outputs.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Current | 20 A |
| Voltage | 120 V |
| Power | 378 W |
