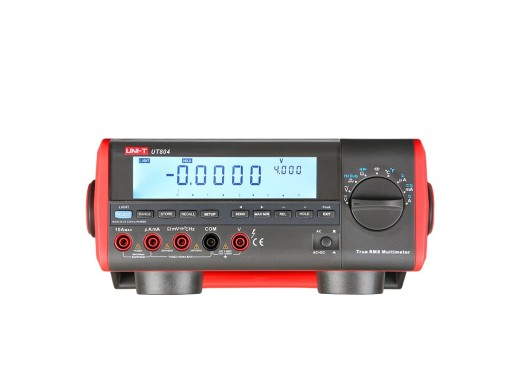

The UNI-T UT804 is a high precision benchtop multimeter with a 40,000 counts display. It can be powered by either batteries or from mains power which makes it usable on locations that do not have a power outlet. It can measure DC/AC voltage, DC/AC current, resistance, diodes, continuity, capacity, loop current, frequency and duty cycle.
The multimeter offers connectivity through RS232C and USB. These connections can be used to connect with a computer to log data. In addition, the multimeter has a memory function for local storage. The dial allows for easy switching between measuring modes.
Specifications Range and accuracy Specification Range Accuracy Max. DC Voltage 1000 V ±(0.025% + 5) Max. AC Voltage 1000 V ±(0.4% + 30) Max. DC Current 10A ±(0.1% + 15) Max. AC Current 10A ±(0.7% + 15) Max. Resistance 40 M ±(0.3% + 40) Temperature -40 °C — 1000 °C ±(3% + 30) Max. Capacity 40 mF ±(1% + 20) Frequency 0.001 Hz — 400 MHz ±(0.01% + 8) True-RMS Yes Extra functions duty cycle, loop current, continuity test, diode test Power 6x 1.5V R14 or AC 200V ~ 240V 50Hz Display 4-3/4 digits (40000 counts), 4.3′ LCD Refresh rate 3 Hz Safety CAT.I 1000V, CAT.IV 600V Weight 3000 g Dimensions 105 x 240 x 310 mm Accessories
The UNI-T UT804 multimeter comes with the following accessories:
- Test Lead
- K-Type point contact temperature probe
- Alligator clip
- Test clip
- USB interface cable
- RS232C interface cable
- 1.5V Battery(R14) x 6
- Power Cable
