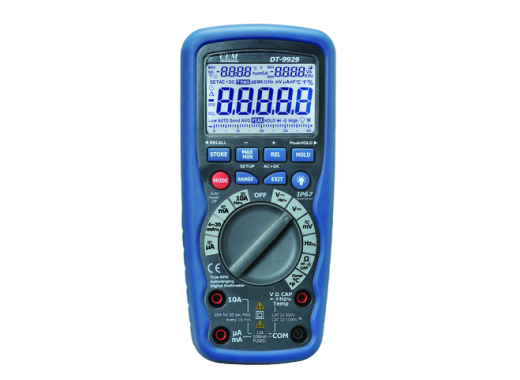

The CEM DT-9929 is a great allround meter that can compete with more expensive meters in the area of precision and logging. All AC/DC current and voltage measurements can be performed but also all standard other functions like resistance, capacitance, frequency, temperature, duty cycle, diode and continuity are available. Additionally, this meter features Min/Max record and peak/data hold function and also 4-20mA process measurements can be performed.
The meter features a 40000 counts backlit LCD display which includes an analog bar graph. Furthermore, the DT-9929 provides data logging up to 2000 readings.
The DT-9929 has a IP67 waterproof rating and input protection. Specifications Max. AC/DC voltage 1000 V Max. AC/DC current 10 A (20 A for 30 sec) Max. Resistance 40 M Max. Capacitance 40 mF Frequency 0.01 Hz — 100 MHz Temperature -50 — 1200 ℃ Duty cycle 0.1 — 99.9 % Other functions Diode, Continuity, Min/Max record, Peak/Data hold, Relative Display 40000 counts, backlight LCD Power supply 9V battery Auto power-off Yes True-RMS Yes Dimensions 187 x 81 x 50 mm Weight 342 g Accessories
The DT-9929 comes by default with:
- Carrying case
- Temperature probe
- Testing leads
- Battery
