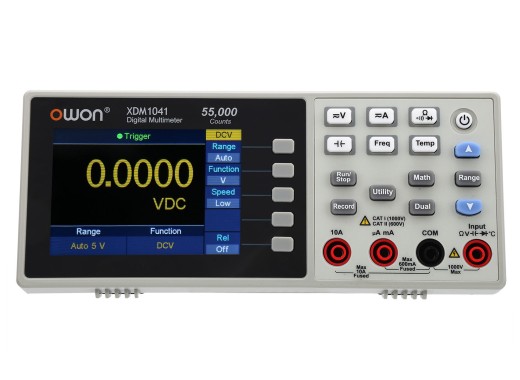

The Owon XDM1041 is an extremely low-cost, high-precision benchtop multimeter. The meter has a True RMS function to measure the AC voltage and current and it has a reading speed of up to 65 values per second.
The XDM1041 is able to store data internally in the memory of the meter and display it on the 3.5′ high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI. Specifications Display resolution55000 counts Max. AC voltage750 V Max. DC voltage1000 V Max. AC current10 A Max. DC current10 A Max. Resistance50 MΩ Max. Capacitance50 mF Frequency0.001 Hz — 60 MHz Other functionsDiode, Continuity, Min/Max record, Peak/Data hold, auto range True-RMS Yes Data logging Yes Display55.000 count, 3.5′ TFT-LCD ConnectivityUSB Eleshop noise rating Dimensions200 x 86.5 x 64 mm Weight450 g Accessories
Owon’s XDM1041 is supplied with:
- Measuring cable + alligator clips
- Power cord
- Fuse
