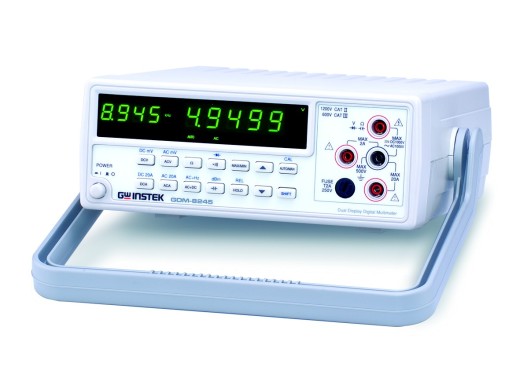

The GDM-8245 is a multi-functional DMM from GW Instek with a basic precision of 0.03% for DC voltage. The multimeter is easy to use and for this price it offers all the functions you need for general purposes.
The screen of this multimeter is a 50000 count LED screen with the ability to display two measurements simultaneously. Thus you can display ACV together with dBm or frequency and you can display DCV together with dBm or ACV ripple. Furthermore, has this multimeter besides the standard measurement functions also has additional functions such as Max/Min, Hold, Continuity and Relative value.
The GDM-8245 has no external interfaces such as USB or Lan.
Specifications Measurements ModeRangeBasic precision Max. DC Voltage1000 V ±(0.03% rdg + 4 dgts) Max. DC Current20 A±(0.3% rdg + 2 dgts) Max. AC Voltage1000 V ±(2% rdg + 30 dgts) Max. AC Current20 A±(1% rdg + 15 dgts) Resistance500 — 20 M±(0.1% rdg + 2 dgts) DiodeMax forward voltage: 1.5VMax open voltage: 2.8V Capacitance5 nF — 50 μF±(2% rdg + 4dgts) Frequency10Hz — 200kHz Input Impedance 10M True RMS ✔ Measurement functions Auto range, Manual range, max, min, dBm, Rel, Hold, continuity Display Dual display, 0.4’/0.5′ (7 segments, 50000 counts) Dimensions 251(W) x 91(H) x 291(D) mm Weight 2.6 kg
