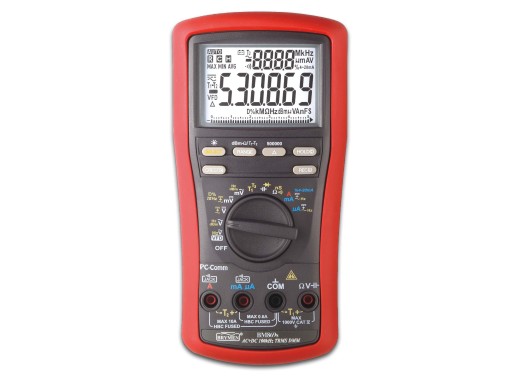

The Brymen BM869s is a high performance multimeter that has no problem matching up to the expensive Fluke meters when it comes down to display, possibilities and accuracy.
Very accurate measurements can be read thanks to the 500,000-count display that updates 5 times per second. These include AC/DC voltages, currents and other measurements such as resistance, conductance, capacitance, frequency, duty cycle and much more.
The BM869s is fused for use up to 1000 V and can even measure to this value. Thanks to the 500,000 count display, the meter can accurately measure 2 decimals even at 1000 V. On top of this, the meter offers various data analysis tools such as Crest, MIN-MAX, Hold and Average. Within a very short time frame, Crest can measure and display the Min-Max values automatically.
Some of the special measuring particulars of the multimeter include for example the high-speed capacitance measurements that allow readings of 25 mF within seconds. The meter also offers standard support for the analogue 4-20 mA measuring result that is used in some systems. The meter can also perform dual channel measurements. This enables connecting two thermocouples at the same time to perform two measurements simultaneously. In addition, the meter also offers support for measuring most VFDs. For this, the frequency and fundamental voltage are displayed simultaneously on the screen.
This multimeter can be used with an optional PC USB connection kit! Click here! Specifications
Digits / Counts
4 45 Digits / 50,000 Counts
5 45 Digits / 500,000 Counts (low speed)
Range and accuracies Specifications Range Accuracy Max. DC voltage 1000 V ±,(0.02%+2) Max. AC voltage 1000 V ±,(0.5%+40) Max. DC current 10 A ±, (0.15%+20) Max. AC current 10 A ±,(0.7%+50) Max. resistance 50 M ±,(0.1%+2) Temperature -50 C — 1000 C ±,(1%+1) Max. capacitance 25 mF ±,(1.5%+3) Frequency 1 mHz — 1 MHz ±,(0.002%+4)
When measuring currents, values up to 20 A can be measured for max 30 seconds. Afterwards the meter needs to cool for 5 minutes.
Other measurements
Duty cycle, Diode tester, Conductance, Continuity, dBm
Overload protection
1000 Volt
Automatic standby
Yes
Dimensions
208 x 103 x 64.5 mm
Weight
635 g
Accessories
The Brymen 869s comes bundled with:
- 2 x test lead (1 black, 1 red)
- 1x K-type thermocouple
