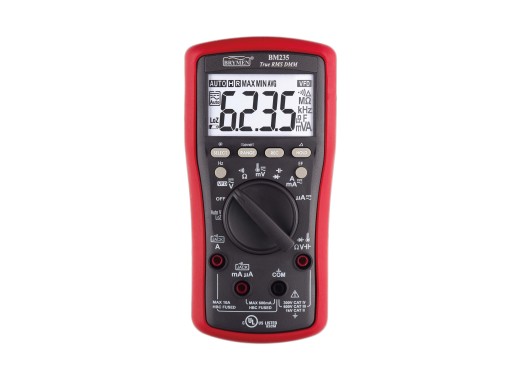

The Brymen BM235 multimeter combines high quality and excellent performance with compactness and low cost. Furthermore, this multimeter features True RMS measurements, has a basic accuracy of 0.3% and fulfills the requirements of CAT II to CAT IV safety classes.
In addition to default measurement options, this multimeter is also able to perform temperature measurements, capacitance measurements and line frequency measurements. Moreover, an unique feature of the multimeter is its ability to detect a non-contact electric field and determine the field strength. This is done by means of an antenna which is located in the multimeter.
The BM235 has received a special recognition from EEVblog. The review of a rebrand of this product by EEVblog can be seen here.
Specifications Range and accuracies Specifications Range Accuracy Max. DC voltage (V) 1000V ±,(0.3%+2 digits) Max. AC voltage (V) 1000 V ±,(0.7%+3 digits) Max. DC current (A) 10A ±, (0.7%+3 digits) Max. AC current (A) 10A ±,(1%+3 digits) Max. resistance () 60M ±,(0.3%+3 digits) Temperature (C) -40 — 400C ±,(1%+1C) Max. capacitance (F) 10mF ±,(1.5%+2 digits) Frequency (Hz) 10 Hz — 50 kHz ±,(0.3%+2 digits) True RMS Yes Batteries 2x 1.5V AA Digits 3-5/6 digits (6000 counts) Safety CAT II 1000V CAT III 600V and CAT IV 300V AC & DC Weight 334g Dimensions 161mm x 80mm x 50mm
Please refer to the user manual of EEVblog and the datasheet listed below for more information.
Accessories
The Brymen BM235 is delivered including:
- 2 Batteries
- Holster
- Test lead
- K-type temperature probe
