| Replaces N female with 3.5mm female Test Port Adapters |
| Intermodulation Distortion3 |
| Time Domain |
| 6 GHz Noise Figure1 |
| Frequency Translating Group Delay (FTGD) |
| Harmonic Measurement |
| Z540/Guide 25 Calibration |
Additional Features:
- Frequency range: 10 MHz-6 GHz
- Measurement Speed: 150 μsec/point
- Dynamic Range: 125 dB
- Source Power: +10 dBm
- Receiver Noise as Low as –115 dBm
- S-Parameter Uncertainty: <, 0.05 dB
- Mixed Mode S-Parameters
- Embedding/De-embedding
- Arbitrary Impedance
- AutoCal® Simplifies 2,3 and 4-Port Calibrations
- N-type, 3.5 mm, or GPC-7 Connectors
- Sequences Automate Repetitive Keystrokes
- Enhanced Markers Simplify Data Collection
- Overlay Displays to Customize Data Viewing
- External SCSI Interface for Massive Storage
See the True Performance of Your:
- Antennas, Isolators, Filters, Duplexers, Couplers
- SAW Filters, Baluns
- Amplifiers
- Mixers
- Power Amplifiers
- Tower Mount Amplifiers
- Multiport Components

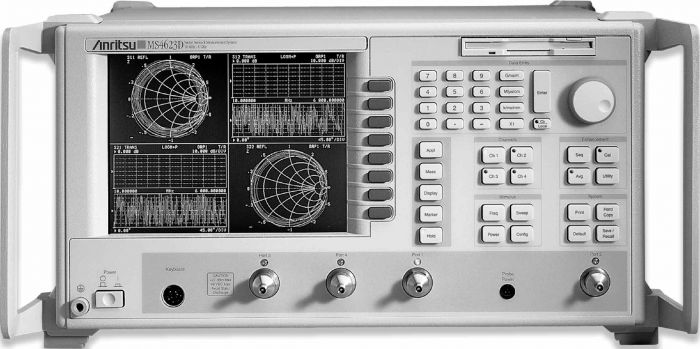

The foundation of the Scorpion® MS4623D Vector Network Measurement System (VNMS) is a high performance 2-port Sparameter measurement engine consisting of a single flexible source and ultra-linear receiver. This vector network analyzer (VNA) engine provides all the necessary features to thoroughly characterize your RF components versus time, frequency and power.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 6 GHz |
