| Internal Control of AutoCal |
| Replaces N-female with GPC-7 male |
| Replaces N-female with 3.5 mm male |
| 3.5mm Female Connector |
| Intermodulation Distortion |
| Rack Mount Kit with Handles |
| Time domain |
| Adds a 2nd Internal source (6GHz source + 3rd Port) |
| Noise Figure 50 MHz to 3 GHz |
| Harmonic Measurement |
Additional Features:
- Frequency: 10 MHz-6 GHz
- Power range: +7 to –85 dBm
- Level accuracy: ±1 dB
- Sweep range: 20 dB Minimum
- Harmonics:–30 dBc
- Stability: <,5 ppm / year

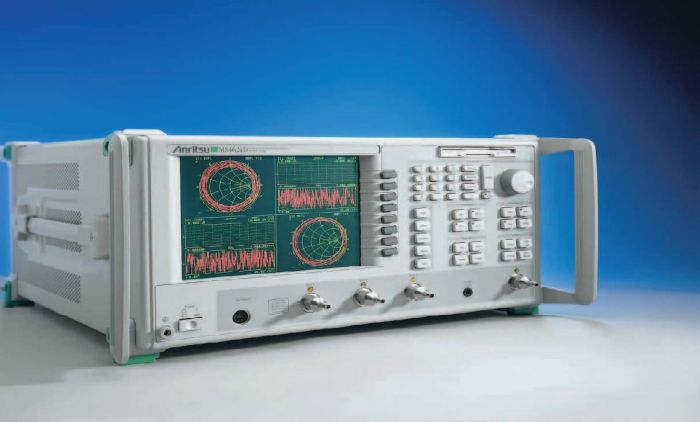

The Anritsu MS4623B is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 6 GHz |
