Description

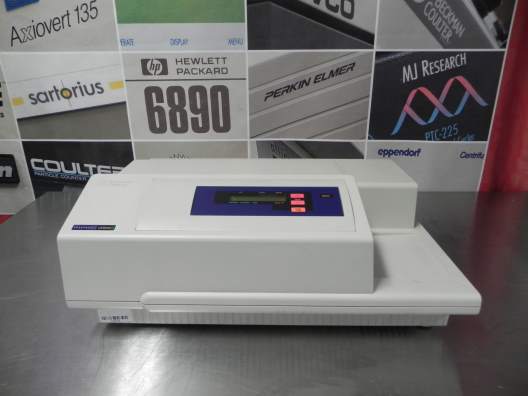

The Gemini XPS Fluorescence Microplate Reader uses dual monochromators for variable wavelength selection between 250 nm and 850 nm to eliminate the need for searching out the right pair of excitation and emission filters. Dual monochromators also enable wavelength scanning across a range of wavelengths in increments as small as 1 nm to optimize assay parameters.
Includes:
- Computer loaded with Softmax Pro
- All Necessary Cables and Cords
- Manuals
General Specifications
- Dimensions (in.): 8.6 (h) x 22.8 (w) x 15 (d)
- Dimensions (cm): 22 (h) x 58 (w) x 38 (d)
- Weight: 35 lb (16 kg)
- Power source: 100-240 VAC, 50/60 Hz
Performance Specifications
- Wavelength Range Excitation: 250-850 nm
- Wavelength Range Emission: 360-850 nm
- Wavelength Selection: Monochromator, tunable 1.0 nm increments
- Wavelength Bandwidth (Excitation and Emission): 9 nm
- Wavelength Accuracy: <, ±, 2.0 nm
- Top Read Sensitivity: 3.0 fmol/well FITC 200 l in 96 wells
- Light Source: Xenon flash lamp
- Microplate Read Time:
- Normal Mode
- 96 wells. . . . 15 seconds
- 384 wells. . . . 45 seconds
- Dynamic Range: 6 orders of magnitude
- Temperature Range: Ambient + 4 C up to 45 C
- Temperature Uniformity (Microplate): ±, 1 C @ 37 C
The Gemini XPS Microplate Reader supports a multitude of fluorescence assay categories including:
- ELISAs and Immunoassays
- Nucleic Acid (DNA) Quantitation
- Protein Quantitation
- Reporter Gene Assays
- Cell Viability, Proliferation, and Cytotoxicity
- Enzyme Assays
- Transporter Assays
- Phosphotases/Kinases
- Microbial Growth
