Description
Features:

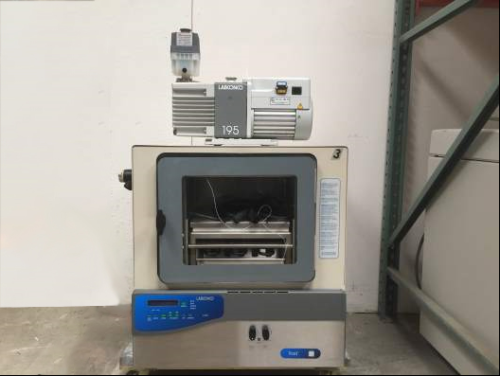

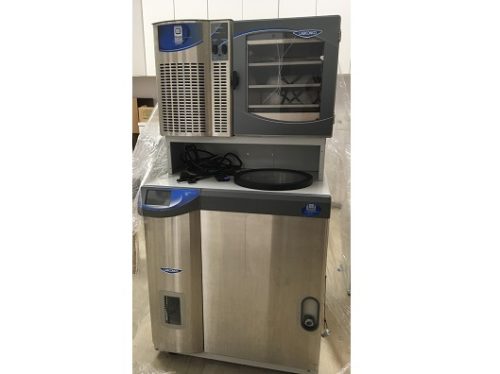

LAB Series combines many of the features of larger systems in to a small console. Using the best components and design techniques combined with the most advanced PC/PLC control system, the LAB Series is the perfect solution for both your small lot protocol development and small scale production needs. The system comes complete with Opti-Dry PC/PLC freeze drying control system and offers all the necessary options to meet your most demanding needs. The LAB Series offers 3.75 sq ft of shelf area and 8L of condensing capacity with 63mm of shelf-to-shelf spacing, providing more performance and capacity than any system in its class.
Specifications:
- Control System: PC/PLC with Opti-Dry Software
- Shelf Temperature Range: -45C or –70C to +65C
- Shelf Heat Transfer: Hollow Fluid Filled
- Shelf Size and Finish: 10” x 18” , 316L, 20 Ra or better
- Shelf Area:75 sq ft
- Shelf Assembly: Bulk or Stoppering
- Condenser Temperature: -53C or –85C
- Condenser Capacity: 8L
- Condensing Rate: 6L in 24 hours
- Condenser Style: Exposed Coil – Internal
- Compressors: Hermetic
- Defrost: Hot Gas
- Vacuum Pump: 200 LPM, Corrosion Resistant
- Vacuum Control: Pirani w/Solenoid & Needle Valve
- Gas Backfill: Included
- Product Sensors: 4 type “T” Thermocouples
- Cabinet: 35”W x 42”D x 54”H
- Electrical: 230V/60Hz or 200V/50Hz, 1PH
