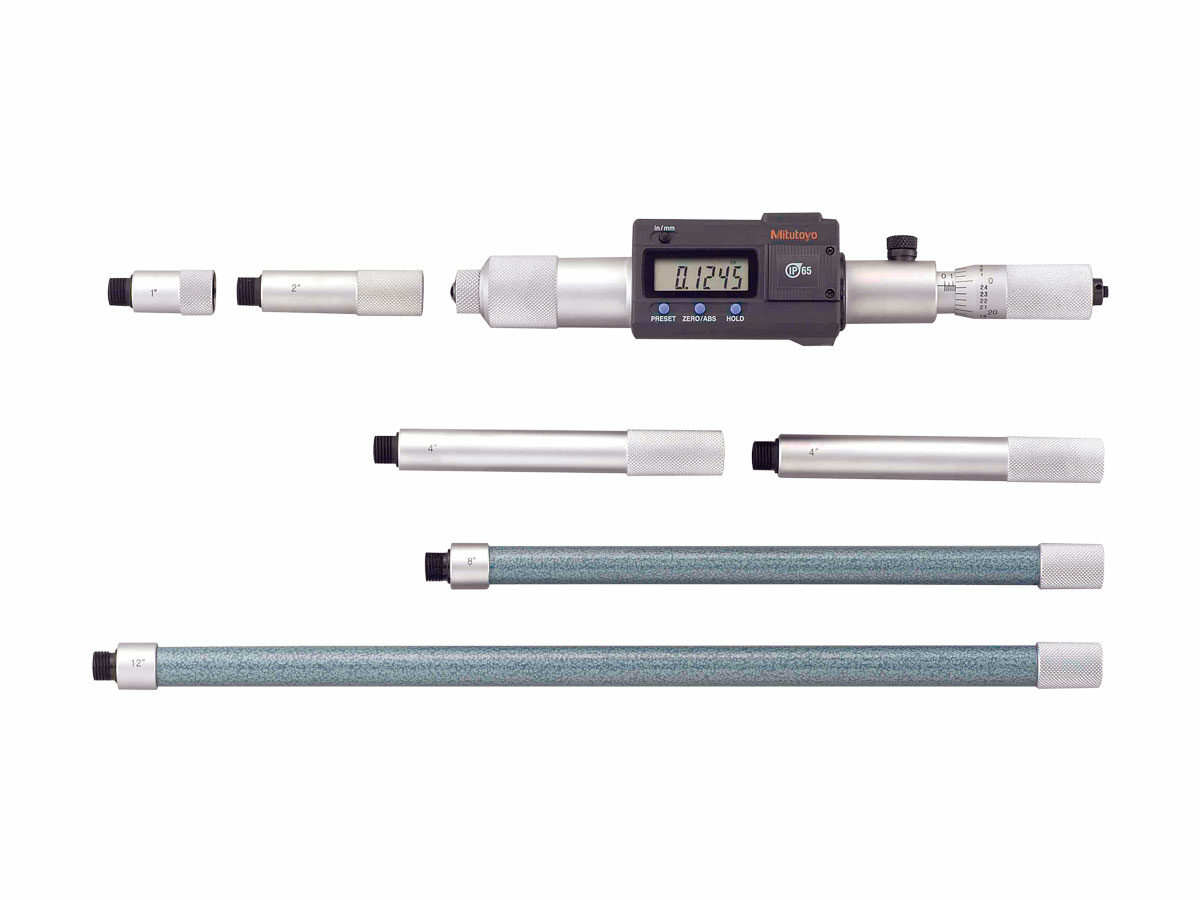

The Mitutoyo Digimatic digital tubular inside micrometer includes a set of solid extension rods to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. Measurements are displayed with a resolution to 0.001mm / .0001″ on an easy-to-read LCD readout. The extension rods have knurled collars for easy, secure installation and removal.
Available in Metric and Metric/Inch sets
Solid extension rod allows the ability to measure many different dimensions with reliability and durability
Measuring faces are carbide-tipped for better accuracy and wear resistance
SPC output function offers quick and easy data management in real time
Elimination of overspeed errors provides a higher measurement reliability and repeatability
Functions include Zero/ABS Setting, Data Hold, Data Output, Preset, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
IP65 protection permit use in environments exposed to cutting oil, dust, etc.*
Supplied in fitted wooden case
*Anti-corrosion treatment is required after use
Order No.:
Product Image:
Units:
Range:
Resolution:
Spindle Feed Error:
Travel of Micrometer Head:
Extension rods:
Order No.:
337-101
—
Metric
200 — 225mm
0.001mm
3µm
25mm
Micrometer Head Only
337-102
—
Metric, Inch
203.2 — 228.6mm / 8-9″
0.001mm / 0.0001″
3µm / 0.00015″
1″
Micrometer Head Only
337-301
—
Metric
200 — 1000mm
0.001mm
3µm
25mm
25, 50, 200, 300, 100 (2 pcs)
337-302
Metric
200 — 1500mm
0.001mm
3µm
25mm
100, 25, 50, 200, 300 (3 pcs)
337-303
Metric, Inch
203.2 — 1016mm / 8-40″
0.001mm / 0.0001″
3µm / 0.00015″
1″
1, 2, 8, 12, 4 (2 pcs)
337-304
Metric, Inch
203.2 — 1524mm / 8-60″
0.001mm / 0.0001″
3µm / 0.00015″
1″
1, 2, 4, 8, 12 (3 pcs)
337-101
337-102
337-301
337-302
337-303
337-304
Технические характеристики
Technology:
Digimatic
Measuring Faces:
Carbide tipped
Display:
LCD
Battery:
SR44 (1 pc.) 938882
Battery life:
Approx. 8 months under normal use
IP Rating:
IP65
SPC Output:
Yes
Type:
Extension rod
Accessories:
Accessories
Микрометры Digimatic с трубчатыми внутренними микрометрами типа удлинительного стержня — товар из ассортимента Laserzz для подбора и поставки под задачи ремонта и комплектации.
Позиция подходит для сценариев замены и закупки под конкретную спецификацию оборудования.
Для корректного выбора сверяйте маркировку, параметры и совместимость с вашей схемой/узлом.
