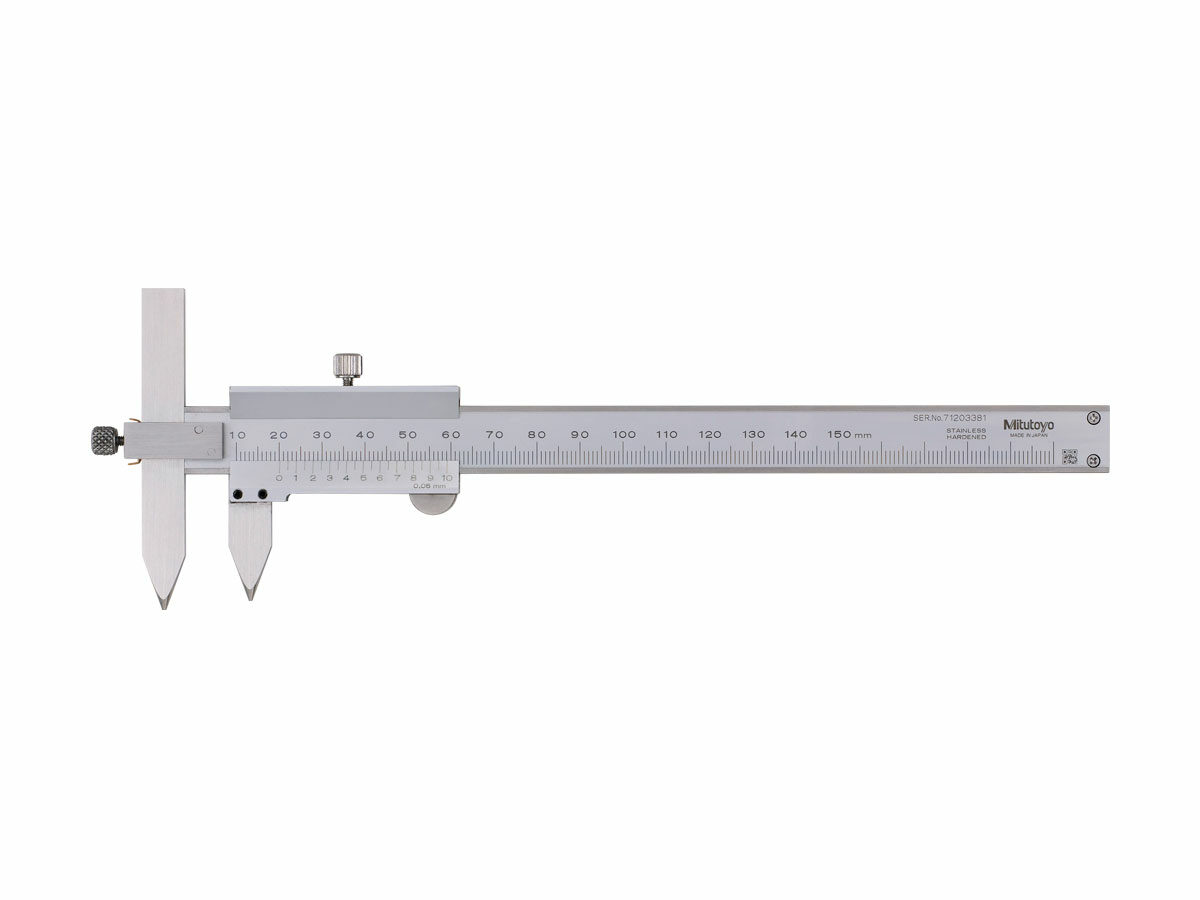

The Mitutoyo Vernier Offset caliper features main scale jaws which adjust up and down to measure center-to-center distances that are not level. This caliper also takes highly accurate edge-to-center measurements with hole diameters of 1.55mm to 10mm. Offers dual metric reading scales for taking measurements and features raised sliding surfaces which prevent defacement and wear of scale graduations. The offset caliper is constructed of hardened stainless steel that resists corrosion for longer, more accurate use.
- Available in Metric models
- Raised sliding surfaces prevent defacement and wear of scale graduations
- Constructed of corrosion-resistant, hardened stainless steel
- Lock screw holds the sliding jaw position for accurate measurement
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | |
|---|
| 536-105 |  | Metric | 10.1-150mm | ±0.05mm | 140g |
| 536-106 | — | Metric | 10.1-200mm | ±0.05mm | 160g |
| 536-107 | — | Metric | 10.1-300mm | ±0.08mm | 320g |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Graduation: | 0.05mm |
|---|
