Микрометр со сферической поверхностью — сферическая наковальня и шпиндель

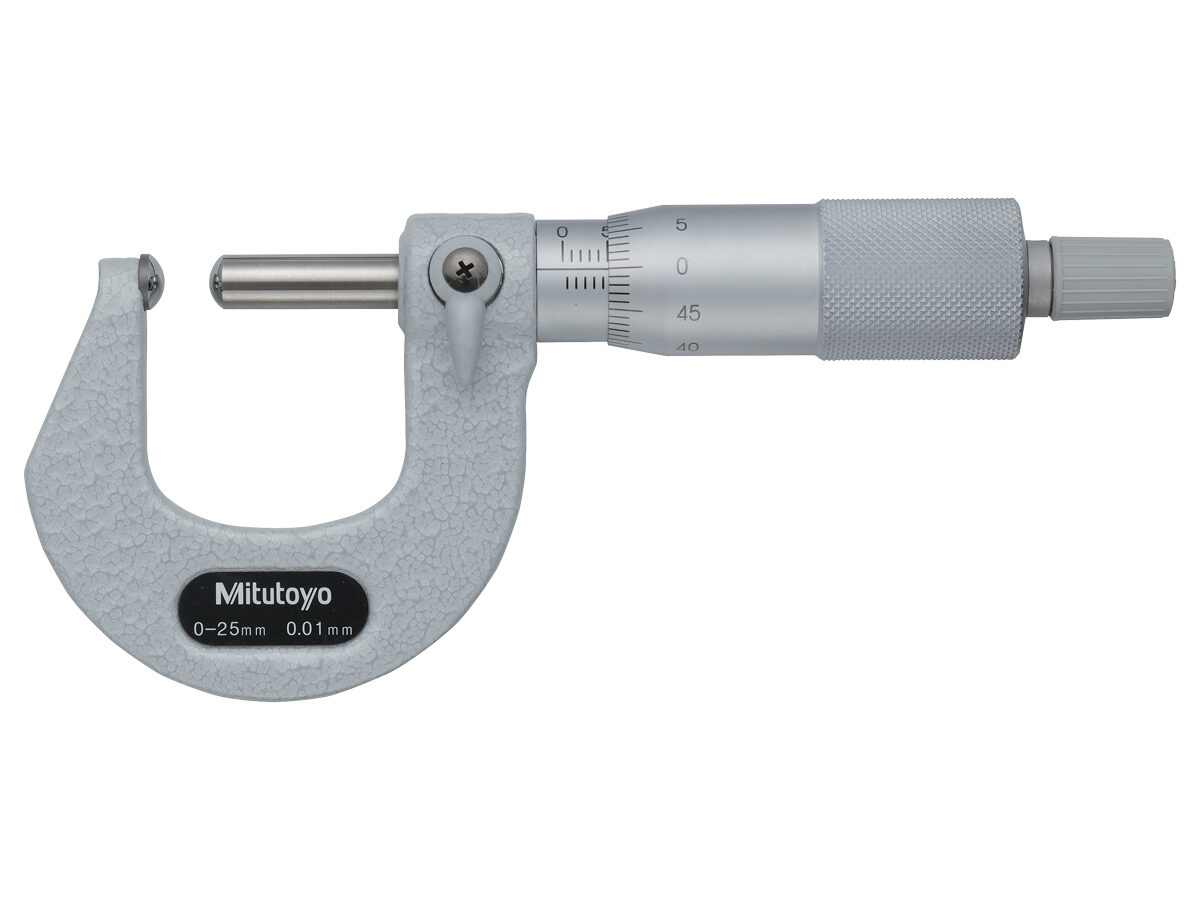

The Mitutoyo spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle, depending on the application. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. The micrometer has a measurement range of 0 to 1.0″ (0 to 25.4mm), resolution of 0.00005″ (0.001mm), and an accuracy of +/- 0.0001″

• Available in Metric and Inch models
• Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle
• Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
• Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
• Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
• Knurled friction thimbles provide quick adjustments even when wearing gloves
• Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
• Frame has a baked enamel finish for durability and longer lifespan
• Includes a standard bar except for 0-25mm and 0-1” models
• Supplied in fitted plastic case
