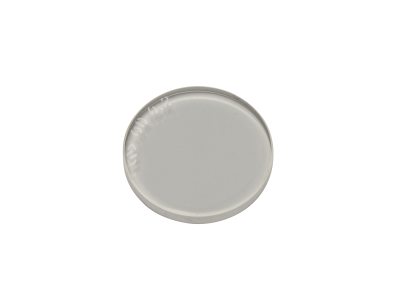

Металлический нейтральный фильтр, УФ-плавленый кварц, 25,4 мм, OD 0,2 при 632,8 нм Модель: FRQ-ND02

Технические характеристики

• Size Ø25.4 mm
• Wavelength Range 350 — 2000 nm
• Optical Density 0.2
• Optical Density Tolerance ±7&percnt, @ 632.8 nm
• Transmission 63.1% @ 632.8 nm
• Angle of Incidence 0°
• Material UV grade fused silica or equivalent
• Damage Threshold 30 W/cm2 CW, typical, not recommended for pulsed laser use
• Size Tolerance ±0.25 mm
• Thickness 3.0 mm

• Thickness Tolerance ±0.25 mm
• Surface Flatness &le,1&lambda, at 632.8 nm over the clear aperture
• Surface Quality 60-40 scratch-dig
• Clear Aperture &ge,central 80% of dimensions
• Wedge &le,3 arc min
• Chamfers 0.25–0.76 mm face width
• Chamfers Angle Tolerance 45° ±15°
• Durability MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
• Cleaning See How to Clean Optics
