Механический наружный микрометр-трещотка

Внешний микрометр Mitutoyo обеспечивает высокоточные измерения с разрешением до 0,0001 дюйма и шкалой нониуса. Механический счетчик цифр с шагом 0,01 мм или 0,001 дюйма обеспечивает быстрое и безошибочное считывание.

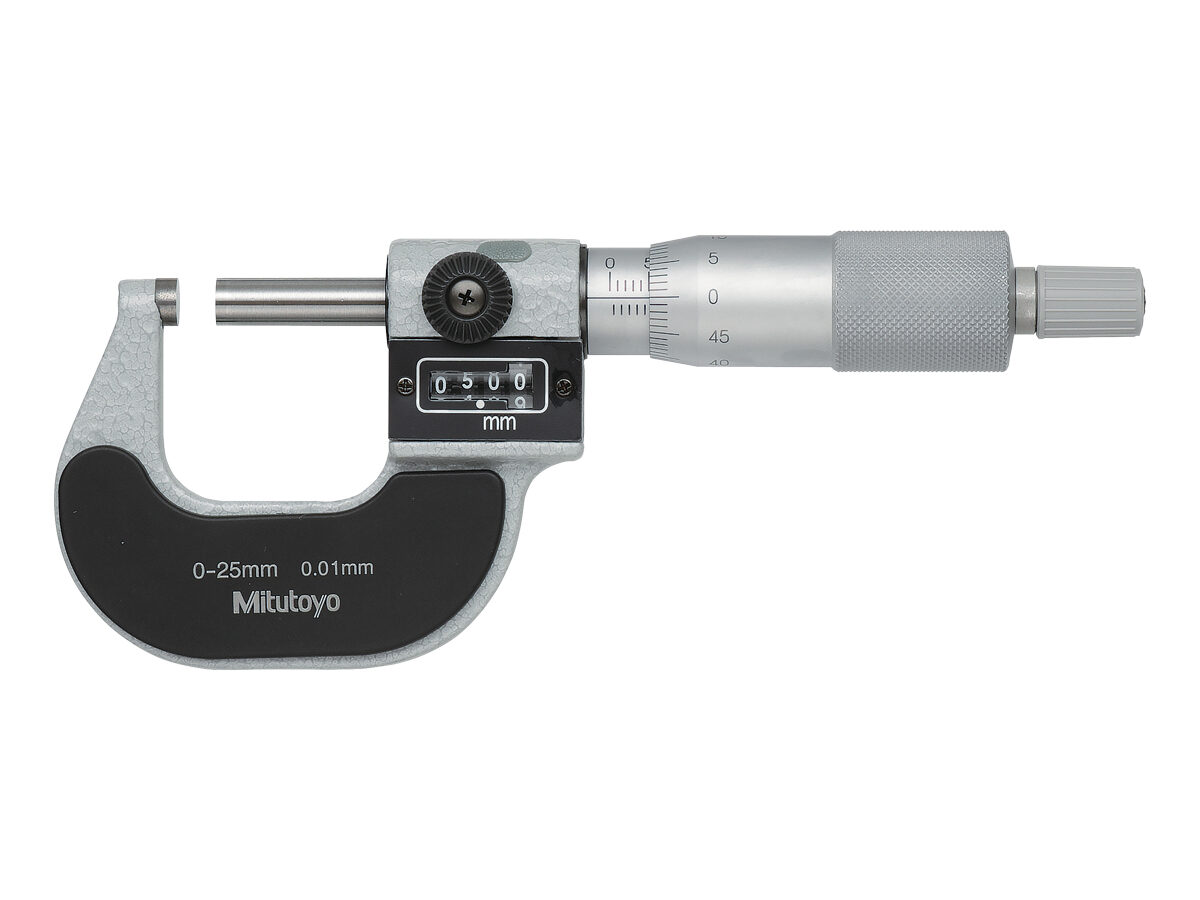

The Mitutoyo outside micrometer with mechanical digit counter features a ratchet-stop mechanism which provides uniform pressure on a workpiece for precise, repeatable measurements. The frame has a satin chrome finish for durability, and measurements on the thimble and conversions on the frame are laser etched for easier reading. A Vernier scale with slanted barrel markings to help reduce parallax errors provides highly accurate outside diameter measurements.

Available in Metric and Inch models
The micrometer»s ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements
Mechanical digit counter offers easy measurement readings to 0.01mm
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
A spindle lock provides secure locking of the measurement position
Satin chrome finish on the thimble and sleeve resists rust and reduces glare
Includes a standard bar except for the 0-25mm / 0-1” model
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Flatness:	Parallelism:	Remarks:

Order No.:

193-101	—	Metric	0-25mm	±2µm	224g	0.01mm	0.6µm	2µm or less	—
193-102	—	Metric	25-50mm	±2µm	275g	0.01mm	0.6µm	2µm or less	—
193-103	—	Metric	50-75mm	±2µm	379g	0.01mm	0.6µm	2µm or less	—
193-104	—	Metric	75-100mm	±3µm	489g	0.01mm	0.6µm	3µm or less	—
193-111	—	Metric	0-25mm	±2µm	224g	0.001mm	0.6µm	2µm or less	0.001 reading is obtained with vernier
193-112	—	Metric	25-50mm	±2µm	275g	0.001mm	0.6µm	2µm or less	0.001 reading is obtained with vernier
193-113	—	Metric	50-75mm	±2µm	379g	0.001mm	0.6µm	2µm or less	0.001 reading is obtained with vernier
193-114	—	Metric	75-100mm	±3µm	489g	0.001mm	0.6µm	3µm or less	0.001 reading is obtained with vernier
193-213		Inch	2-3″	±0.00010″	379g	0.0001″	—	0.00010″ or less	.0001 reading is obtained with vernier
193-214		Inch	3-4″	±0.00015″	489g	0.0001″	—	0.00010″ or less	.0001 reading is obtained with vernier

193-101
193-102
193-103
193-104
193-111
193-112
193-113
193-114
193-213
193-214

Технические характеристики

Technology:	Digit counter
Ratchet/Thimble:	Ratchet Stop
Measuring Faces:	Carbide tipped
