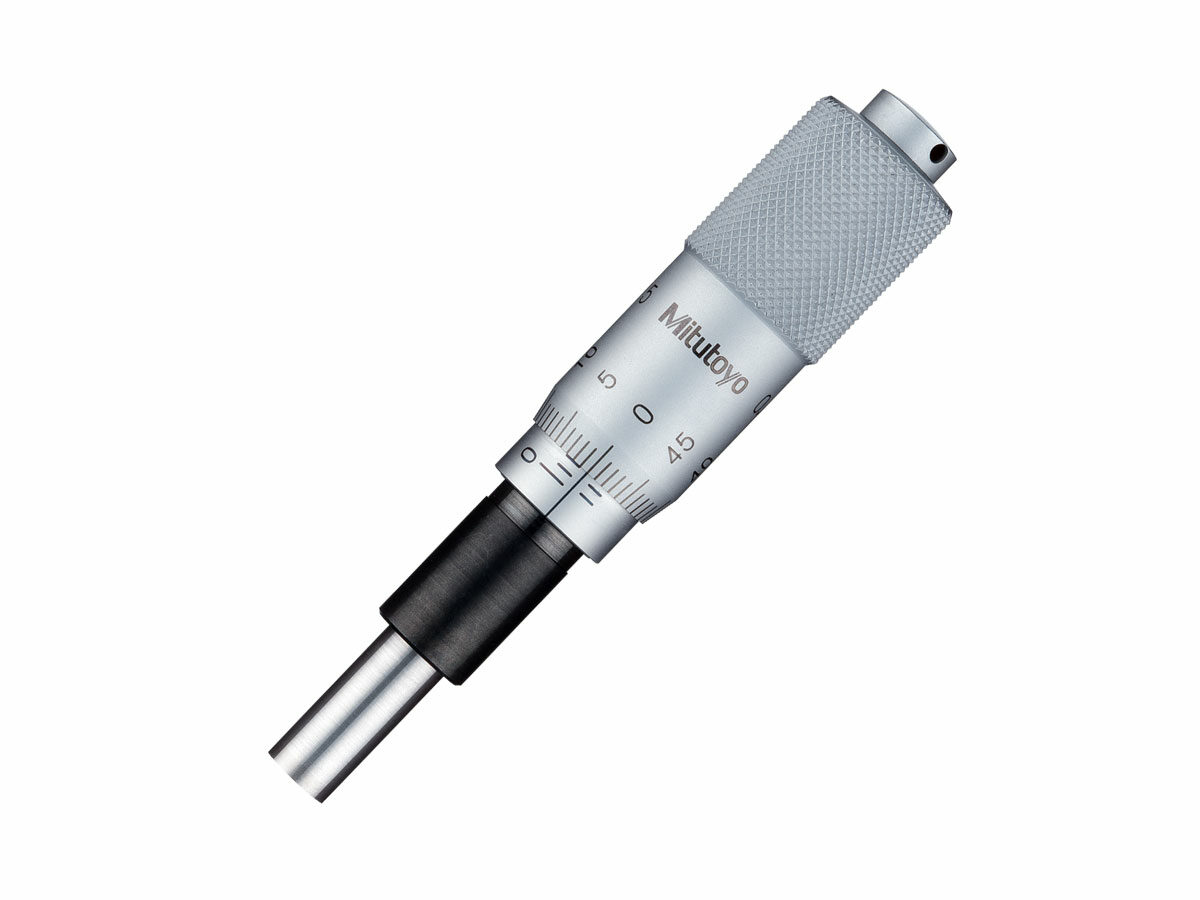

The Mitutoyo small-sized micrometer head delivers precise stage adjustments and measurements up to 0.5”. Its precision lapped, carbide-tipped spindle is exceptionally flat, accurate and durable. The thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements.
- Available in Metric and Inch models
- Smaller size mic head has a 15mm thimble diameter
- Mounting stem diameter is 9.5mm / .375”
- Spindle range is 15mm / .5”
- Spindle diameter is 6.35mm / .25”
- Mic head total length (at stroke end) is 90.5mm / 3.56”
- Reverse reading is available on some models
- Spindle faces have lapped surfaces and constructed of ultra-hard SKS3 steel. Available in spherical or flat types
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Measuring Faces: | Stem Diameter: | Stem: | Spindle pitch: | Spindle Lock: | Remarks: | |
|---|
| 149-131 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | w/clamp nut | 0.5mm | No | — |
| 149-132 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | Plain | 0.5mm | No | — |
| 149-147 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | — |
| 149-148 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | Plain | 0.025″ | No | — |
| 149-182 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | Yes | — |
| 149-183 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | Plain | 0.5mm | Yes | — |
| 149-184 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | w/clamp nut | 0.5mm | Yes | — |
| 149-185 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | Plain | 0.025″ | Yes | — |
| 149-801 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | Plain | 0.5mm | No | — |
| 149-802 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | w/clamp nut | 0.5mm | No | — |
| 149-811 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | Plain | 0.025″ | No | — |
| 149-812 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | — |
| 149-821 | — | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | Plain | 0.5mm | No | Reverse reading |
| 149-822 |  | Metric | 0-15mm | ±2µm | 0.01mm | Carbide tipped | 9.5mm | w/clamp nut | 0.5mm | No | Reverse reading |
| 149-831 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | Plain | 0.025″ | No | Reverse reading |
| 149-832 | — | Inch | 0-0.5″ | ±0.0001″ | 0.001″ | Carbide tipped | 0.375″ | w/clamp nut | 0.025″ | No | Reverse reading |
| 149-131 |
| 149-132 |
| 149-147 |
| 149-148 |
| 149-182 |
| 149-183 |
| 149-184 |
| 149-185 |
| 149-801 |
| 149-802 |
| 149-811 |
| 149-812 |
| 149-821 |
| 149-822 |
| 149-831 |
| 149-832 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Scale Surface: | Hard chrome plating |
|---|
| Measuring Faces: | Carbide tipped |
|---|
