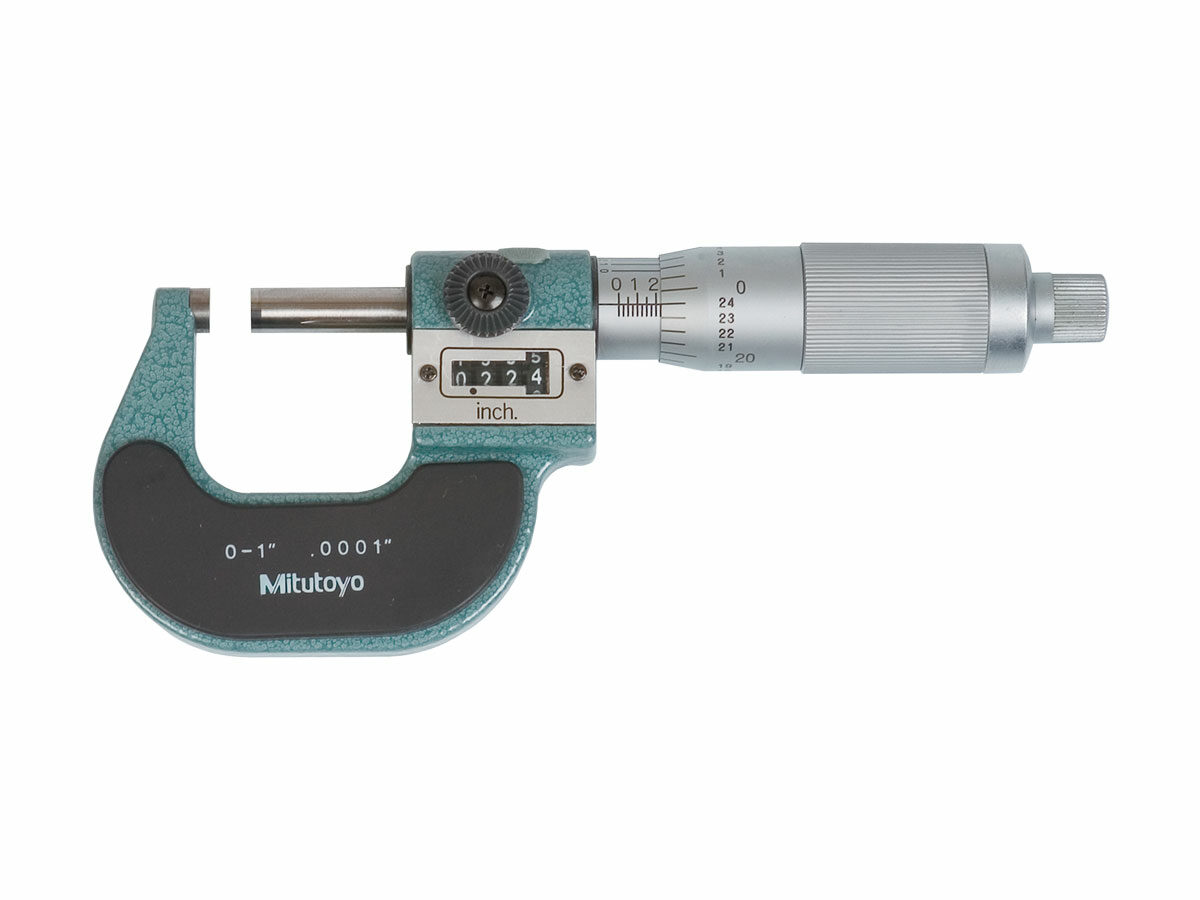

The Mitutoyo outside micrometer with mechanical digit counter features a ratchet-stop mechanism helps provide uniform pressure on a workpiece for precise, repeatable measurements. The frame has a satin chrome finish for durability, and measurements on the thimble and conversions on the frame are laser etched for easier reading. A Vernier scale with slanted barrel markings to help reduce parallax errors provides highly accurate outside diameter measurements.
- Available in Inch models
- The micrometer»s friction thimble provides smooth uniform pressure on a workpiece for precise, repeatable measurements.
- Mechanical digit counter allows easy measurement readings to 0.01mm
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- A spindle lock provides secure locking of the measurement position
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- Includes a standard bar except for 0-25mm / 0-1” model
- Supplied in fitted plastic case
| Order No.: | Product Image: | Range: | Mass: | |
|---|
| 193-211 | — | 0-1″ | 224g |
| 193-212 | — | 1-2″ | 275g |
Технические характеристики
| Technology: | Digit counter |
|---|
| Units: | Inch |
|---|
| Accuracy: | ±0.00010′ |
|---|
| Ratchet/Thimble: | Friction Thimble |
|---|
| Graduation: | 0.0001′ |
|---|
| Flatness: | — |
|---|
| Parallelism: | 0.00008′ or less |
|---|
| Measuring Faces: | Carbide tipped |
|---|
| Remarks: | .0001 reading is obtained with vernier |
|---|
