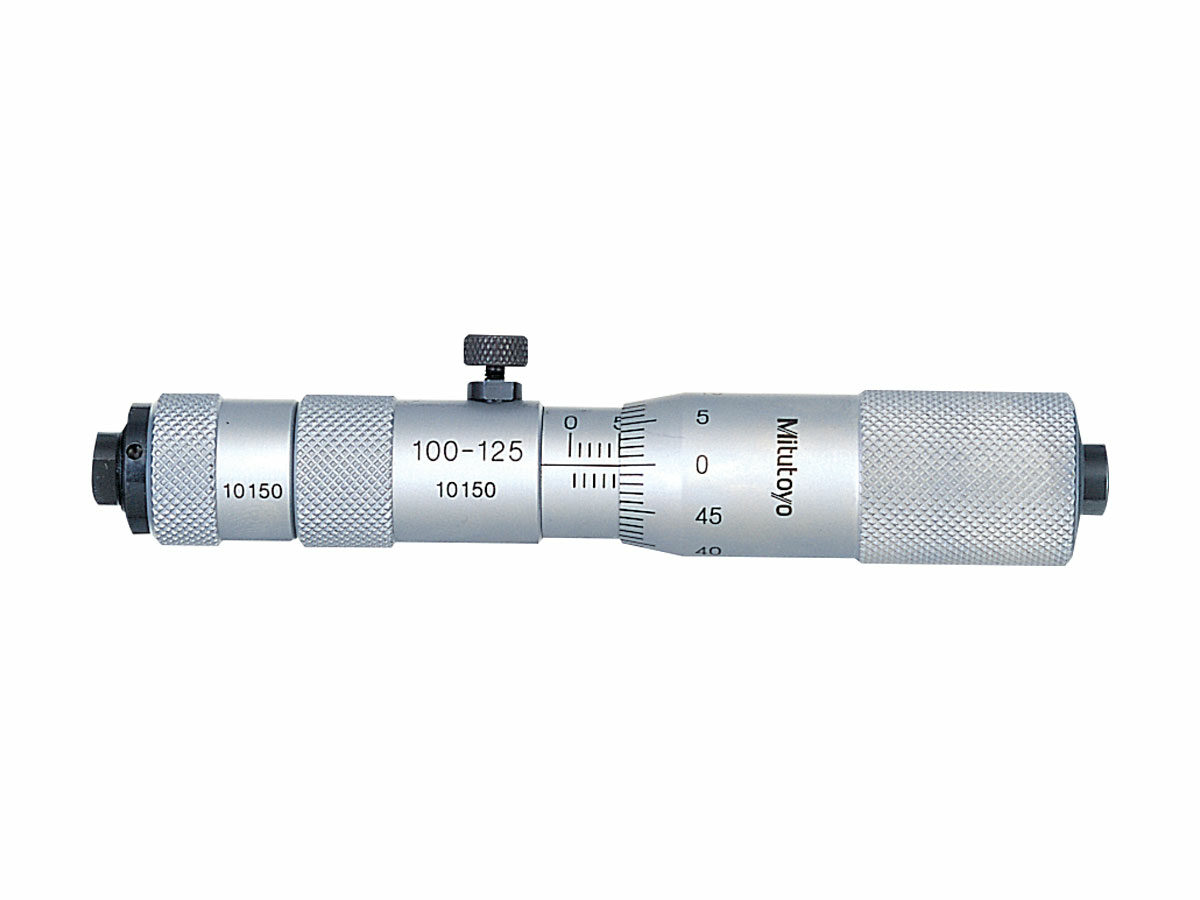

Механические трубчатые внутренние микрометры Тип удлинительной трубы

Механический внутренний микрометр Mitutoyo для удлинительной трубы позволяет измерять широкий диапазон внутренних размеров с высокой точностью.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo mechanical tubular inside micrometer includes a set of hollow extension pipes to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. The extension pipes are lighter and more cost effective than extension rods. Slow head travel helps provide fine measurement position, while a locking clamp holds measurements in place for easier reading. The extension pipes have knurled collars for easy, secure installation and removal.

Available in Metric and Inch sets
Optional setting rings are available
Solid extension rod allows for measuring various dimensions with reliability and durability
Vernier scale on the sleeve permits exact measurements
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Supplied in fitted wooden case, the 500mm / 20″ model comes in a plastic case

Order No.:	Product Image:	Units:	Range:	Graduation:	Spindle Feed Error:	Travel of Micrometer Head:	Extension pipes:	Remarks:

Order No.:

139-001		Metric	100 — 125mm	0.01mm	3µm	25mm	Micrometer Head Only	—
139-002	—	Inch	4-5″	0.001″	0.00015″	1″	Micrometer Head Only	—
139-004	—	Inch	1.5-2″	0.001″	0.00015″	.5″	Micrometer Head Only	—
139-006	—	Inch	4-5″	0.001″	0.00015″	1″	Micrometer Head Only	—
139-173		Metric	100 — 500mm	0.01mm	3µm	25mm	25, 50, 100, 200	—
139-174		Metric	100 — 900mm	0.01mm	3µm	25mm	25, 50, 100, 200, 400	—
139-175		Metric	100 — 1300mm	0.01mm	3µm	25mm	25, 50, 100, 200, 400 (2pcs)	—
139-176		Metric	100 — 1700mm	0.01mm	3µm	25mm	25, 50, 100, 200, 400 (3pcs)	—
139-177		Metric	100 — 2100mm	0.01mm	3µm	25mm	25, 50, 100, 200, 400 (4pcs)	—
139-178		Inch	4-20″	0.001″	0.00015″	1″	1, 2, 4, 8	—
139-179		Inch	4-36″	0.001″	0.00015″	1″	1, 2, 4, 8, 16	—
139-180		Inch	4-52″	0.001″	0.00015″	1″	1, 2, 4, 8, 16 (2 pcs)	—
139-181		Inch	4-68″	0.001″	0.00015″	1″	1, 2, 4, 8, 16 (3 pcs)	—
139-182		Inch	4-84″	0.001″	0.00015″	1″	1, 2, 4, 8, 16 (4 pcs)	—
139-201	—	Inch	1.5-12″	0.001″	0.00015″	.5″	1, 2, 4, .5, 2.5, 3, 3.5, 6	Includes 139-004
139-202	—	Inch	4-40″	0.001″	0.00015″	1″	1, 2, 16, 3, 6, 9, 12, 14, 17, 19	Includes 139-006
