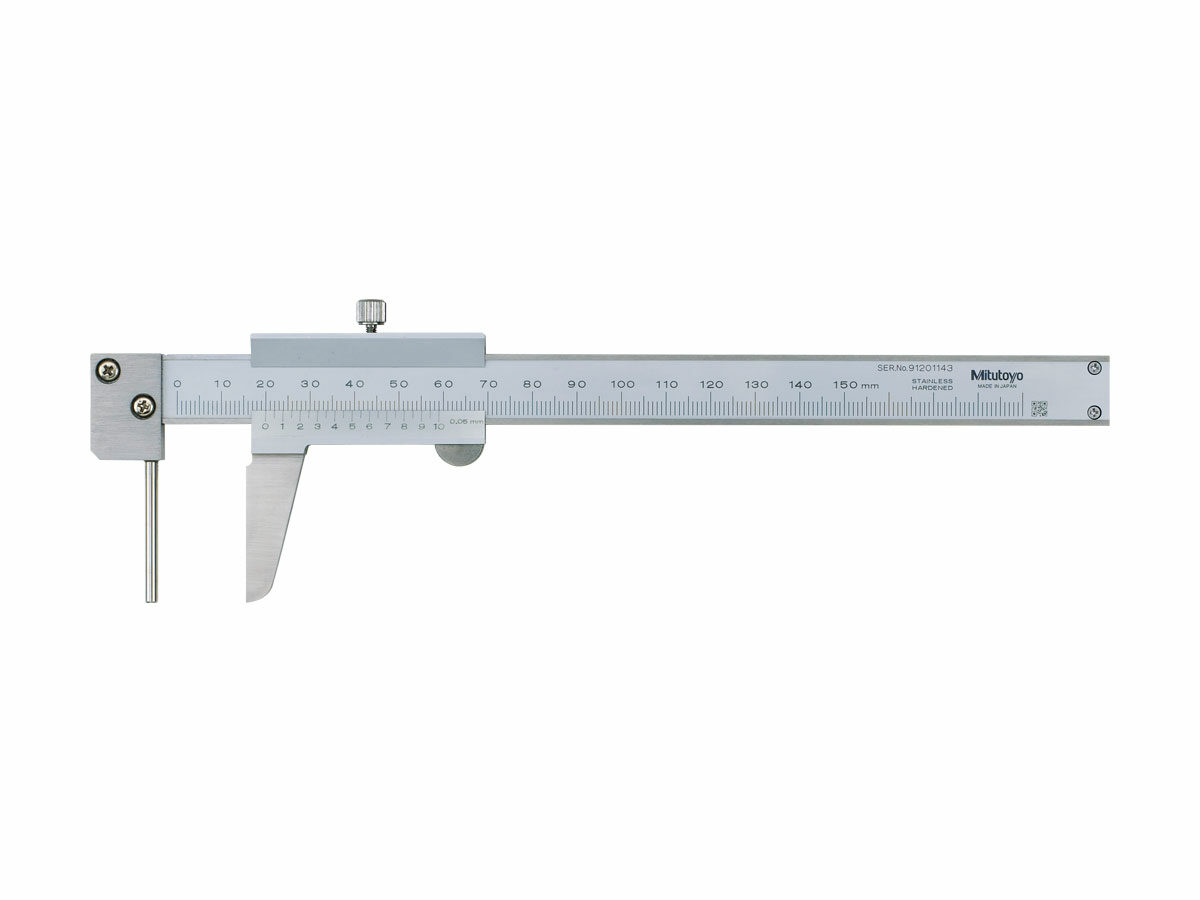

The Mitutoyo Vernier Tube Thickness caliper includes a main scale which consists of a round bar and blade-type jaw constructed of hardened steel to take highly accurate wall thickness measurements of round pieces. The round bar allows the jaw to match the rounded contour of tubes and pipes for precise measurements.
- Available in Metric models
- Range is 0-150mm with accuracy rated at +/- 0.05mm
- Raised sliding surfaces prevent defacement and wear of scale graduations
- Jaws are tipped with carbide for better accuracy and durability
- Constructed of corrosion-resistant, hardened stainless steel
- Lock screw holds the sliding jaw position for accurate measurement
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Technology: | Range: | Graduation: | Accuracy: | Mass: | |
|---|
| 536-161 |  | Metric | Mechanical | 0-150mm | 0.05mm | ±0.05mm | 150g |
