The Mitutoyo Step Master provides four small increments in height to calibrate the Z-axis of optical instruments. The Step Master is constructed from an assembly of five highly accurate steel or ceramic gage blocks. Each adjacent step is measured down to 0.01µm by using an interferometer within the ±0.20µm allowance.
- Available in steel and ceramic types
- Inspection Certificate included

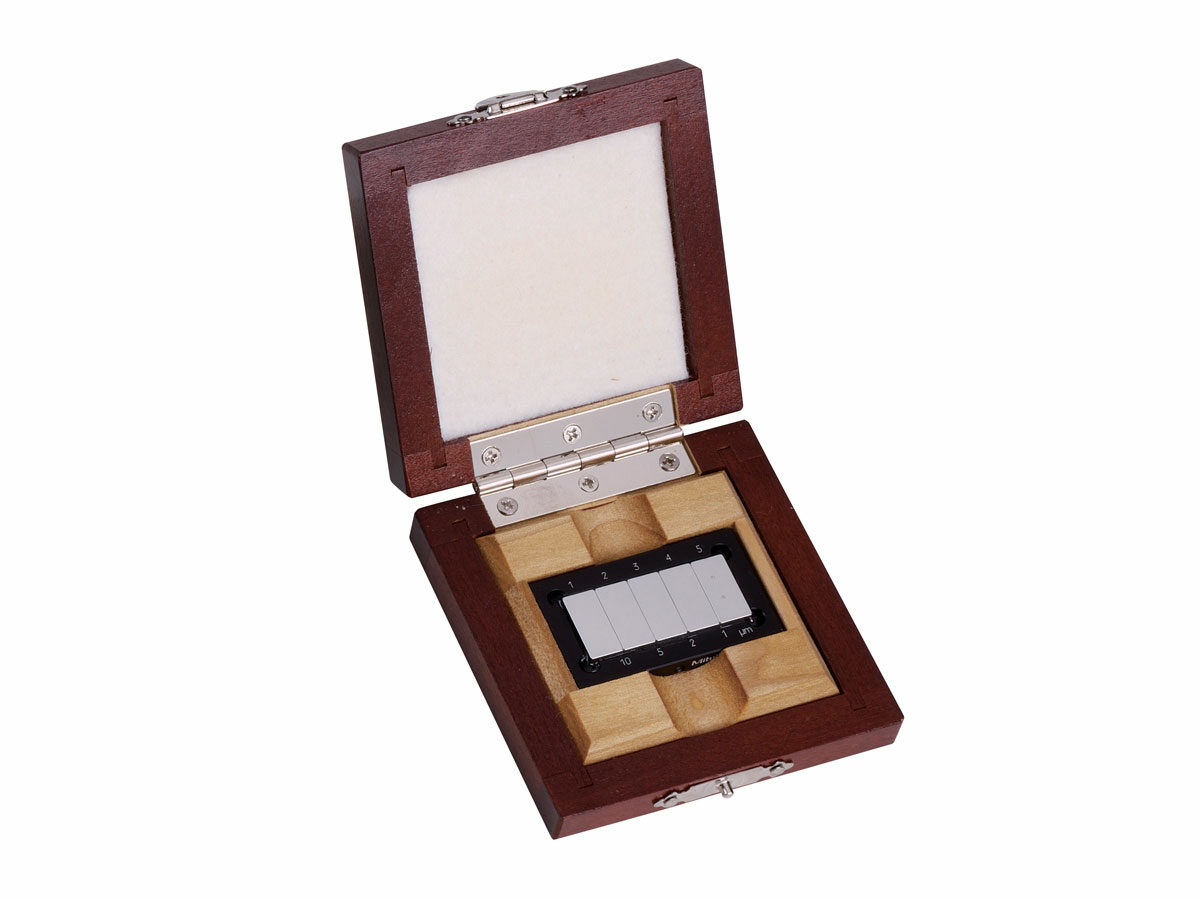

- Supplied in a solid wooden case
| Order No.: | Product Image: | Material: | Step value between adjacent blocks: | |
|---|
| 516-198 | — | Steel | (#1 — #2) 10 µm / (#2 — #3) 5 µm / (#3 — #4) 2 µm / (#4 — #5) 1 µm |
| 516-199 | — | Steel | (#1 — #2) 300 µm / (#2 — #3) 100 µm / (#3 — #4) 50 µm / (#4 — #5) 20 µm |
| 516-498 | — | Ceramic | (#1 — #2) 10 µm / (#2 — #3) 5 µm / (#3 — #4) 2 µm / (#4 — #5) 1 µm |
| 516-499 | — | Ceramic | (#1 — #2) 300 µm / (#2 — #3) 100 µm / (#3 — #4) 50 µm / (#4 — #5) 20 µm |
| 516-198 |
| 516-199 |
| 516-498 |
| 516-499 |
