Description

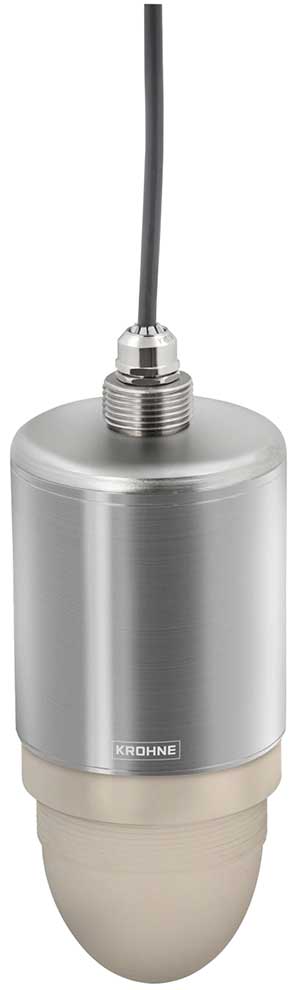

The KROHNE OPTIWAVE 1400 C Radar Level Meter is designed for use with liquids in water and wastewater applications. It is equally suited for continuous, non-contact level measurement of water from springs, rivers, lakes or the sea as well as rainwater, wastewater, sludge or other liquids in storage applications. This meter features a IP68 / NEMA 4X/6 design with wetted parts made of stainless steel and polypropylene and is rated for use in open air installations prone to flooding. The OPTIWAVE 1400 C drop antenna uses an 8° beam angle to provide a sharp focus on liquids and is not susceptible to condensation, turbulent surfaces or foam.
Applications of the KROHNE OPTIWAVE 1400 C Radar Level Meter
- Extraction, transport, storage and distribution of water from springs, rivers, lakes or the sea
- Rainwater basins
- Open-channel flow measurement and floodwater alarms
- Water, wastewater, sludge or other liquids in storage applications
- Wastewater pumping stations
- Liquid level of plastic tanks
Технические характеристики
Features
- 2-wire loop-powered level transmitter
- Distance & reflection primary measured values
- Level, volume, mass & flow rate secondary measured values
- 0 to 66ft (0 to 20m) liquid measuring range
- K-band 24 to 26 GHz
- ±0.8in (±2mm) accuracy
- Up to 43.5 psig (3 barg) process pressure
- Stainless Steel housing
- PACTware HART DD and DTM software
- 3-year warranty
