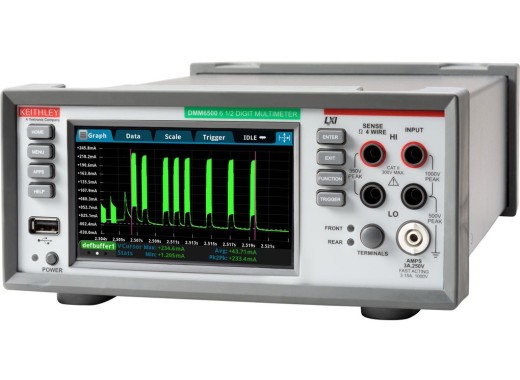

The Keithley DMM6500 is a highly accurate bench multimeter with a fairly large 5-inch 6-1/2 digits (2 000 000- counts) touschscreen display. With this multimeter it is possible to measure DC/AC voltage, DC/AC current, resistance, capacitance, temperature and frequency, in addition to a diode/continuity test, all with very accurate measurement ranges. The 1 MS/sec digitizer allows detection and analysis of voltage or current transients.
The multimeter offers connectivity via USB or Ethernet. These connections can be used to connect to a computer for data logging. In addition, the multimeter has a memory function for local storage of up to 7 million measured values.
Specifications Range and accuracy Specification Range Best achievable accuracy Max. DC voltage 1000 V ±(0,0010% + 0,0004) Max. AC voltage 750 V ±(0,04% + 0,02) Max. DC current 10A ±(0,007% + 0,002) Max. AC Current 10A ±(0,10% + 0,04) Max. Resistance 100 MΩ ±(0,0020% + 0,0006) Max. Capacitance 100 &mu,F ±(0,40% + 0,10) Frequency 3 Hz — 300 kHz ±(0,008%) Temperature -200 °C — 1820 °C ±(0.20 °C) Other functions.Diode, continuity, statistics, graphs, digitizing voltage and current, DC voltage ratio, resistance measurement of 2 and 4 wires True-RMS Yes Datalogging Yes Display 6-1/2 digits (2000000 counts), 5.0′ touchscreen display ConnectivityUSB, ethernet Dimensions224 x 107 x 387 mm Weight 2.72 kg Accessories
The Keithley DMM6500 6.5 digit multimeter comes with the following accessories:
- Measurement leads
- USB interface cable
- Power cord
