last updated : 2020/09/30
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| EELESOLAC04B100 | CABLE FOR SOLAR PV, black, UV- resist, 4mm2, Roll of 100m | on request | 5,8kg | 0 | Add | |
| EELESOLAC04R100 | CABLE FOR SOLAR PV, red, UV-resist, 4mm2, Roll of 100m | on request | 5,8kg | 0 | Add | |
General information

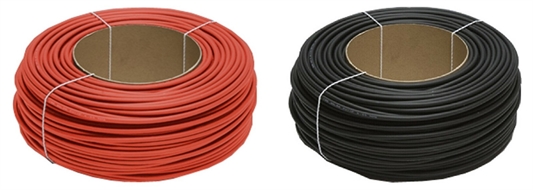

Cable for solar photovoltaic installations.
Black or red, flexible, 4mm² cable.
It has double insulation, which makes it resistant to heat, cold, petrochemicals, abrasion and UV radiation.
Halogen free, the cable has low toxicity.
The cable is to be procured in reels of 100 meters.
Specifications
Length | 100 m |
Cross section | 4 mm² |
Colour | Black (-) or Red (+) |
Weight | 5.8 kg/100 m |
Maximum voltage | 1000 V |
Outer diameter | 5.5 mm |
Temperature range | -40 to +120 °C |
Flame propagation | IEC 60332-1 standard compliant |
Insulation | Double insulation, resistant to heat, cold, oil products, abrasion and UV radiation |
Spare parts and accessories
EELEECONMC4FEM CONNECTOR, SOLAR MC4 Female
EELEECONMC4MAL CONNECTOR, SOLAR MC4 Male
Latest update: 01/10/2020
