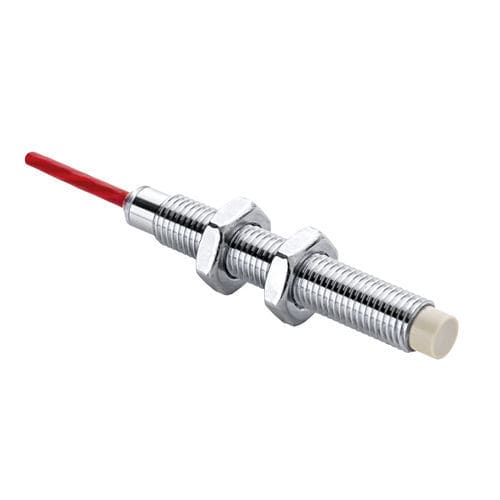

Small Inductive Sensor for extreme Conditions, 120° / IP 69 / Temperaturexchange-Proof If the installation space is limited and the ambient temperature can reach 120 °C, this inductive proximity switch is the problem solver. In the flush design, it offers a switching distance of 2 mm for steel St 37 and signals a detected object with an illuminated ring at the cable outlet. The sensor is waterproof and withstands the cleaning process in areas where cleanliness is important. Its sealing concept also allows it to be used in oily environments.
Технические характеристики
CharacteristicsTechnologyinductiveShapecylindricalDiameterM8Output signalPNPSupply voltageDCMountingthreaded, flush, non-flushMaterialstainless steelProtection leveloil-resistant, rugged, waterproof, for harsh environments, impact-resistant, short circuit-proof, corrosion-resistant, heat-resistant, heat/cold-resistant, IP69K, IP69Applicationsfor food industry applications, for the food and beverage industry, for weldingMeasuring range
Min.: 2 mm (0.08 in)
Max.: 2 mm (0.08 in)
Process temperature
Min.: 0 °C (32 °F)
Max.: 120 °C (248 °F)
