Description

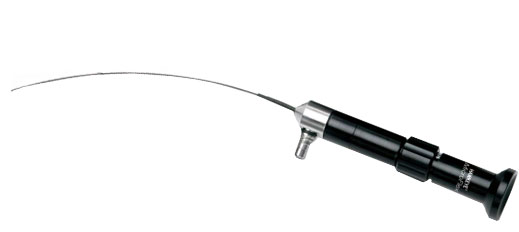

The Hawkeye Pro MicroFlex Fiberscope is ideal for inspecting spaces with small, micro diameters. The 9′ bend radius even allows operators to inspect in places where the entry path is not straight. Applications involving needles, catheters, valves, trocars, cannulas, turbine blades, and other micro manufactured parts are now more accessible than before. The eye piece is easy to remove and replace with the video adapter for the C-mount camera.
The 0.020′ model Fiberscope is polymide-sheathed with a 3,000 pixel fiber imaging bundle. The 0.035′ model Fiberscope features a 10,000 pixel fiber imaging bundle. The plastic-sheathed 0.059′ model includes a 30,000 fiber bundle. Options in length include 6′ (150 mm), 19.6′ (0.5 m), 31.5′ (0.8 m), and 39.4′ (1 m). Choices in Depth of View are 0° and 90°.
Технические характеристики
Specs
| Model | Pro MicroFlex |
| Optics | |
| Direction-of-View | 0 |
| Field-of-View | 0.5mm scope: 55 FOV 0.9mm scope: 55 FOV 1.5mm scope: 70 FOV |
| Depth-of-Field | 0.5mm scope: 1-3mm 0.9mm scope: 2 5mm , 1mm for the 90 deg. scope 1.5mm scope: 3 10mm |
| Distal Focus | Fixed focus lens set |
| Mechanical | |
| Tube Diameter | 0.5mm, 0.9mm, 1.5mm |
| Working Length | 0.5mm scope: 600mm 0.9mm scope: 1000mm 1.5mm scope: 800mm |
| Insertion Tube Bend Radius | 0.5mm scope: 1.5 0.9mm scope: 2.5 1.5mm scope: 3.5 |
| Articulation | None |
| Tube Construction | Black Polymide |
| Environmental | |
| Operating Temperature | 0 to 170 F (-18 to 77 C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig), approx. 30ft water depth |
| Handpiece | Splash proof only |
