Features:
- IR Measurements from 100kΩ to 50GΩ, Voltage: 50 to 1000VDC
- Measure Real and Total Current
- Meet UL, CSA, TUV, VDE, CE safety test requirements
- Compact size and easy to operate
- Provide reliable and stable test results
- Built-in resistance compensation function
- Standard RS-232 interface
- CE Certified
Applications:
- Production Testing of Appliances, Instruments and Information Technology Equipment in Accordance with UL,IEC,TÜV and Other Standards such as EN60335, EN60950, EN61010, CSA C22.2 No. 1010.1, UL3111 and UL1950
- Transformer electrical safety testing
- Generator/motor safety testing
- Non-electronic safety testing
- Appliance electrical safety testing
- Medical electrical safety testing

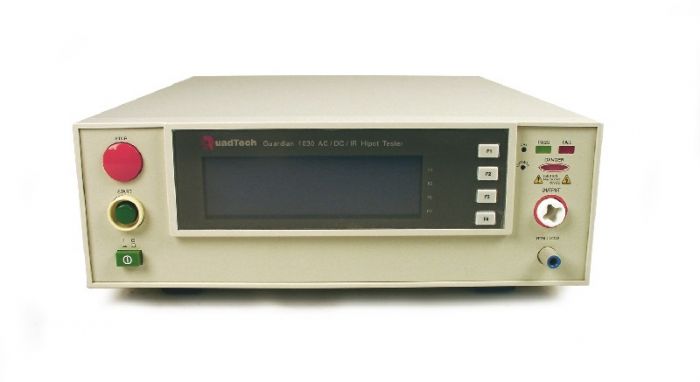

The Guardian 1030 AC/DC/IR Hipot Tester has an addition of DC hipot and IR measurement capabilities. The test voltage can be programmed in the range from 50VDC to 6kVDC with a resolution of 1V. The maximum total current is 10mA. The IR measurement range is from 0.1M ohm to 50G ohm with test voltages from 50 to 1000VDC. In both the DC hipot and IR tests the device under test is discharged back through the HV transformer. This technique results in a rapid and safe discharge.
Технические характеристики
| Manufacturer | QuadTech |
|---|---|
| Condition | Used |
