Features:
- RF Range: 600MHz to4200MHz
- Noise Figure = 2.3dB @ 2600MHz
- Gain = 17.3dB @ 2600MHz
- OIP3 = +40dBm @ 2600MHz
- Output P1dB = +21dBm @ 2600MHz
- Near-Constant Gain versus Temperature
- 3.3V or 5V Power Supply
- ICC= 70mA
- 2mA Standby Current
- 350mW Typical DC Power @ 5V Supply
- 50 Input and Output Impedances
- Operating Temperature (TEP) Range: -40C to +105C
- 2mm x 2mm, 8-DFN Package
Технические характеристики

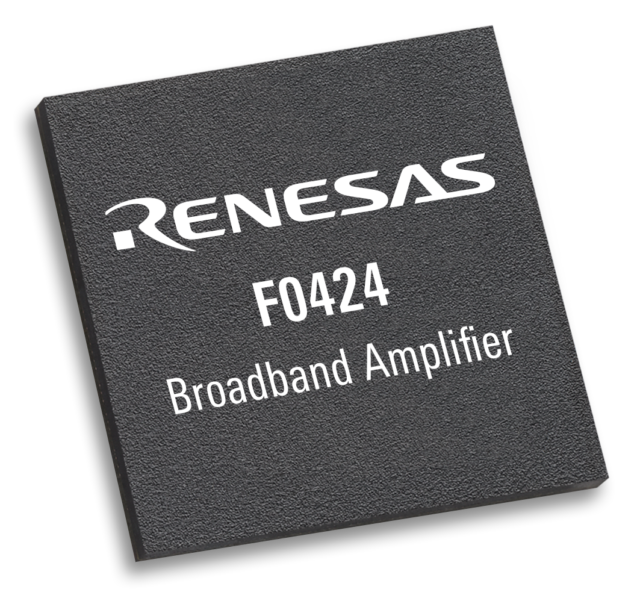

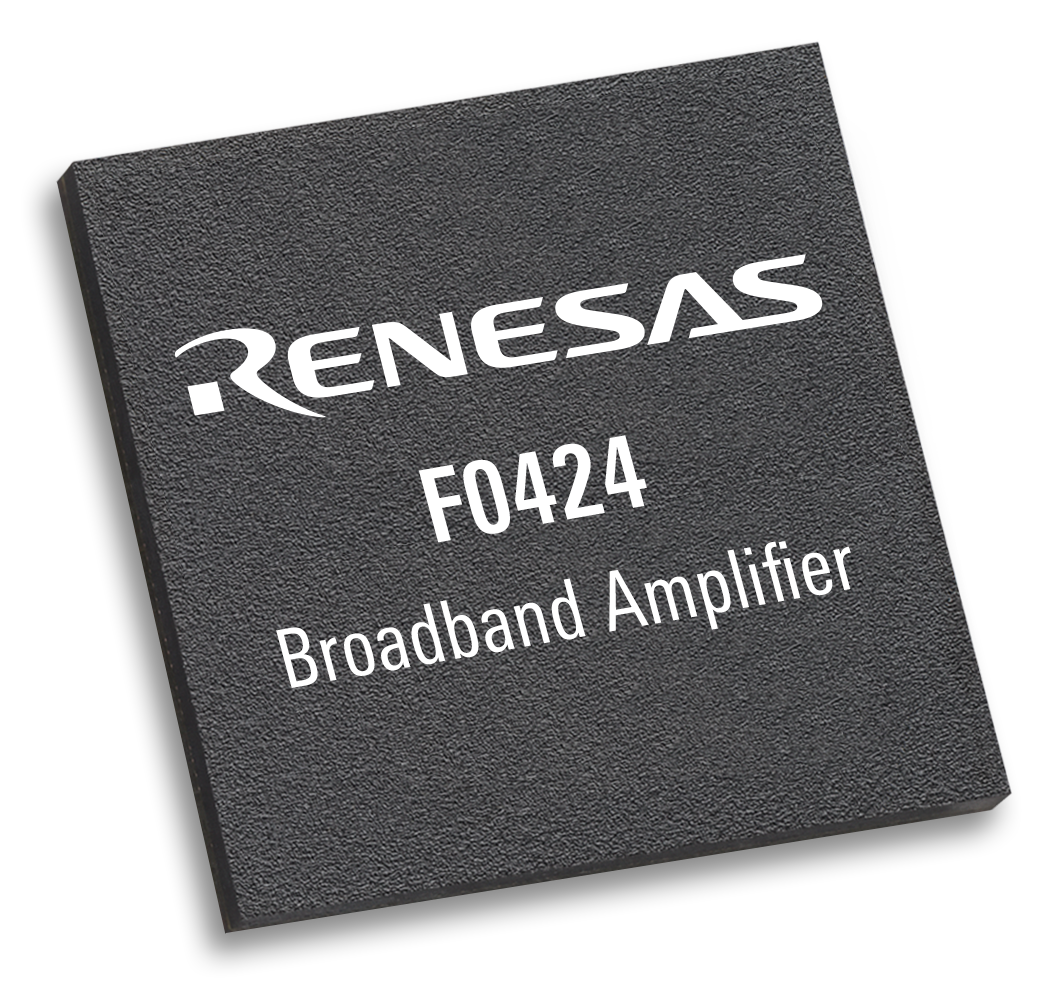

| Part Number: F0424 |
| Manufacturer: Renesas |
| Type: Amplifiers |
| Frequency Min: 0.6 GHz |
| Frequency Max: 4.2 GHz |
| P1dB: 21 dBm |
| Gain: 18 dB |
| IP3: 40 dBm |
| Supply Voltage Vd Min: 3.15 V |
| Supply Voltage Vd Max: 5.25 V |
| Quiescent Current Id: 70 mA |
| Noise Figure: 2.2 dB |
| Package: DFN 2x2mm |
| Gain Flatness: -0.1 ±dB |
| Return Loss Input: 12 dB |
| Return Loss Output: 12 dB |
| Process: SiGe |
