Description

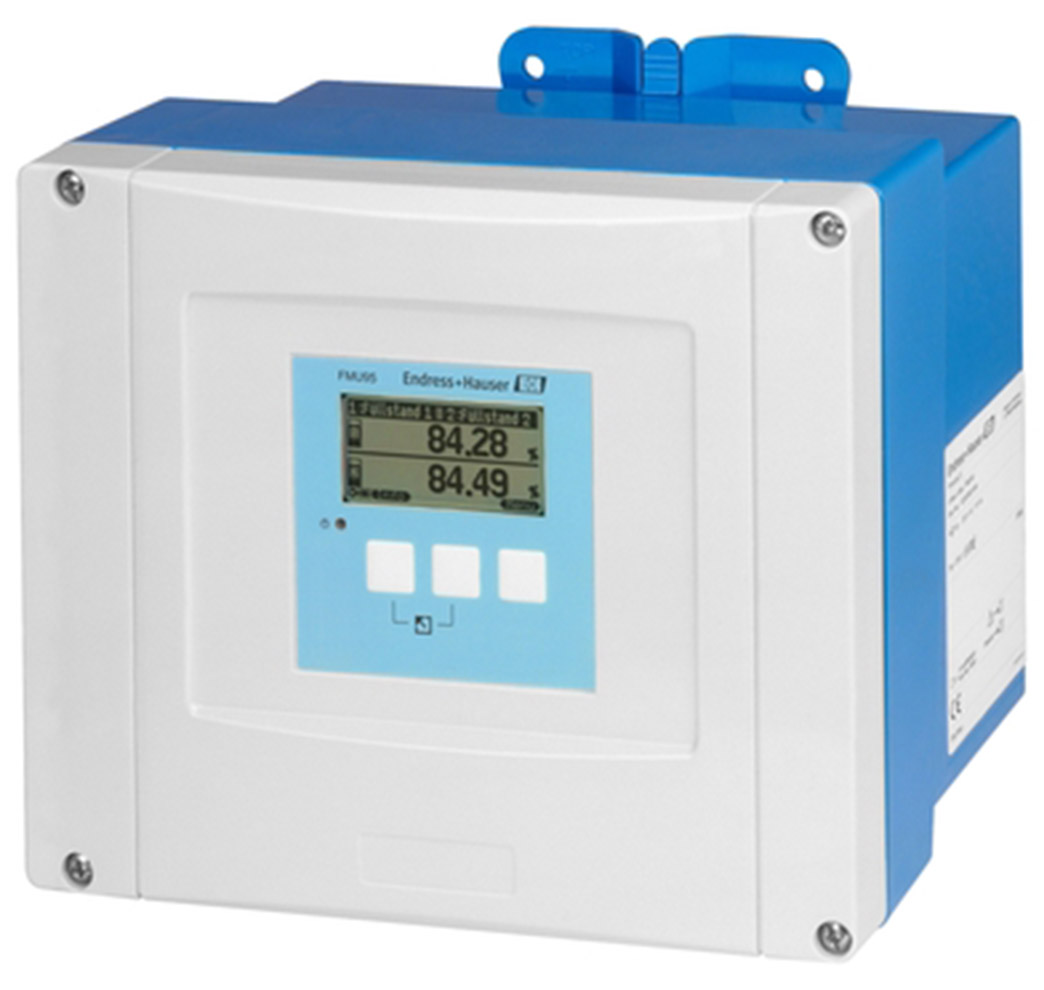

The E+H Prosonic S FMU95 transmitter features continuous, non-contact level measurement of fluids, pastes, sludge, and powdery to coarse bulk solids. The transmitter also measures flow in open channels and weirs with five or ten sensors, including pre-programmed and freely configurable linearization curves for specific types of vessels. It features system integration via PROFIBUS DP with up to 20 measured values, and integrated or external temperature sensors enable time-of-flight correction.
The FMU95 transmitter offers a five- or ten-channel version and the choice of field housing or top hat rail housing for control cabinet instrumentation. The display features envelope curves for quick and simple diagnosis, and the supplied ‘FieldCare’ operating program enables easy operation, diagnosis, and measuring point documentation.
Технические характеристики
Features
- ±0.2% of maximum span of sensor accuracy
- 0.04in (1mm) resolution
- Measuring frequency
- 0.2 Hz with 5 sensors
- 0.1 Hz with 10 sensors
- Up to 20 measured values
- Six-line, plain text display
- Average and sum calculations
- 15 languages selectable
- Field housing: IP66 / NEMA 4x
- DIN rail housing: IP20
- ATEX II 3D, CSA
