Description

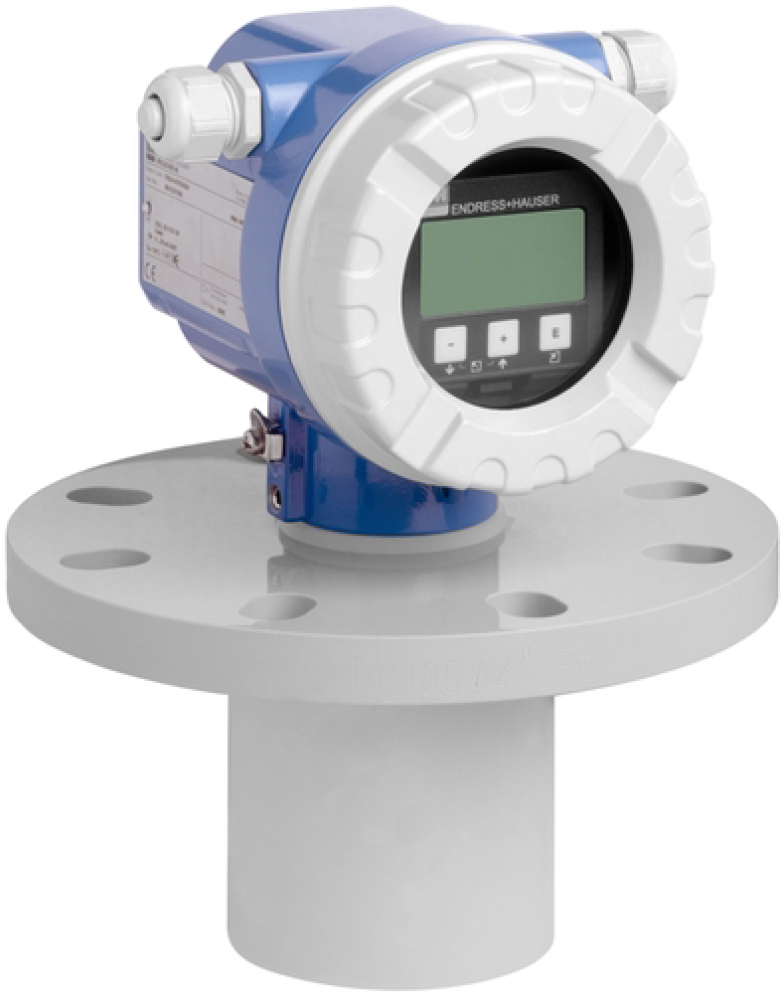

The E+H Prosonic FMU44 Ultrasonic Sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Технические характеристики
Features
- Flange process connection
- -40 to 176°F(-40 to 80°C) temp range
- 10 to 36psi (0.7 to 2.5bar) pressure range
- Maximum measuring distance:
- Liquids 66ft (20m)
- Solids 33ft (10m)
- Blocking distance: Liquids and Solids 1.9ft (0.5m)
- International explosion protection certificates
