Description

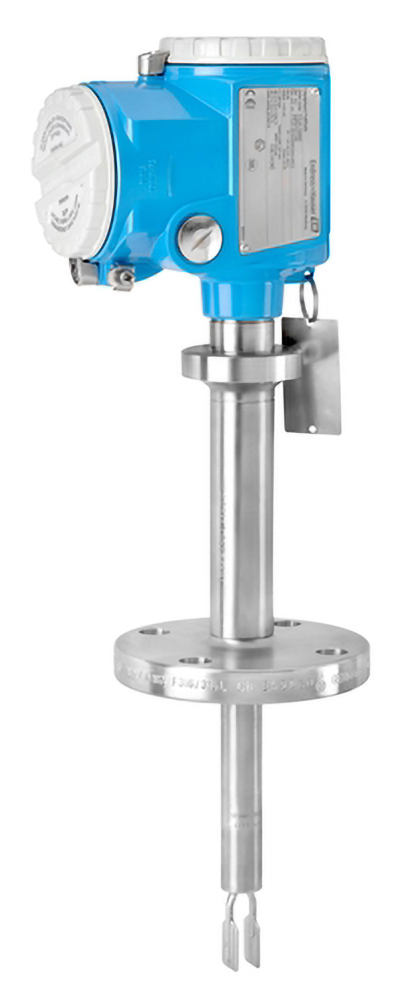

E+H Liquiphant FTL81 is a point level switch for use in hazardous areas with all international certificates. FailSafe overfill prevention in applications with functional safety up to SIL3 with one device. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Технические характеристики
Features
- For liquids up to SIL3
- Thread and flange process connection
- -76 to 540°F (-60 to 280°C) temperature
- -1 to 100bar (-14.5 to 1,450psi) pressure
- Extension pipe up to 9.8ft (3m) sensor length
- 316L, Alloy C sensor material
- International explosion protection certificates
- Overfill prevention WHG, SIL, marine approvals
- ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC
