| RF channel scanner |
| Interference Analyzer |
| DC bias |
| Power meter (requires power sensor) |
| T1 analyzer |
Features:
- Antenna tester (one port insertion loss, two port insertion loss, return loss, and distance to fault measurements)
- Spectrum analyzer
- Internal GPS receiver
Comprehensive base station test:
- Wireless direct connect measurements
- Over-air test measurements
- Backhaul measurements
Multiple wireless system testing:
- cdmaOne, CDMA2000 1X, and CDMA2000 1xEV-DO
- GSM, EDGE, TDMA, iDEN and analog systems
- W-CDMA (UMTS), HSDPA
Hardware Features
- Power meter
- Wireline system testing: T1 or E1
- CW signal generator or CW, cdmaOne, CDMA2000, CDMA2000, 1xEV-DO reverse link signal generator
- Supported power sensors: N8482A-CFT, 8481A, 8482A, and 8481D
Software Features
- cdmaOne, CDMA2000, 1xEV-DO, W-CDMA, and HSDPA over-the-air test tool
- NEM specific test software (Nortel CDMA test SW)
- Interference analysis

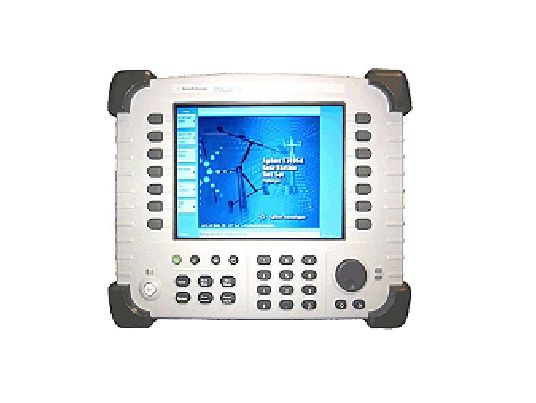

Technicians no longer need to carry armfuls of tools when they perform base station maintenance. All they need is one tool from Agilent Technologies. The Agilent E7495B base station test set:
- Performs all standard BTS and over-air measurements with the accuracy you need – more BTS wireless and wireline measurements than any other test set on the market.
- Minimizes the need for training because of its simple interface, simple procedures, and built-in measurement help.
- Increases each technician»s productivity, decreasing time spent per cell site visit.
- Provides technicians with true spectrum analyzer performance for troubleshooting.
- Stands up to rough field use and all weather conditions.
- Costs much less than all the tools it replaces
The Agilent E7495B base station test set is the most functional one-box tool for wireless 2G/3G and wireline test available today, eliminating the need for technicians to carry, manage, and learn multiple test tools. Consolidating your most frequently-used tools into one box dramatically increases your technicians» productivity. This helps reduce your asset costs, tracking costs, calibration and maintenance costs, and training costs associated with learning the specifics of separate instruments.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
