Product Family Description
- C-Mount, S-Mount, SM1, and SM05 Threading
- Low Profile Designs for Minimal System Intrusion
- Available for SMA, FC, FC/APC, or ST Fiber Connectors

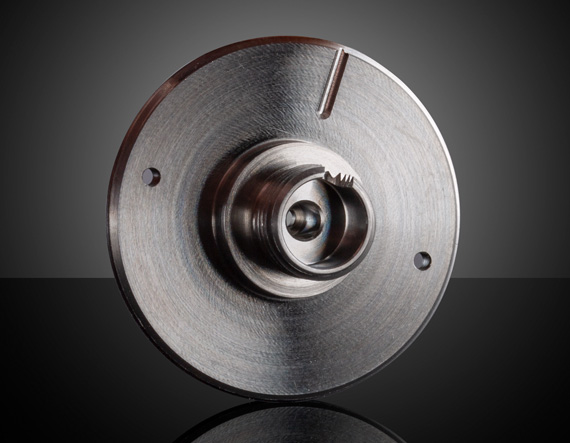

Tube System Fiber Connector Adapters provide an easy and simple solution for integrating connectorized fiber into C-Mount, S-Mount, SM1 (1.035 x 40 TPI), or SM05 (0.535 x 40 TPI) systems. C-Mount Fiber Connector Adapters are available for SMA, FC, or FC/APC connectors. S-Mount Fiber Connector Adapters are available for SMA, FC, FC/APC, or ST connectors. SM1 and SM05 Fiber Connector Adapters are available for FC/APC connectors. Connectors can be threaded into any female C-Mount, S-Mount, SM1, or SM05 component. Tube System Fiber Connector Adapters can be oriented in either direction for maximum flexibility. Optional housings are sold separately.
Технические характеристики
Thickness (mm): 2.00 Construction: Stainless Steel Type of Optics: Fiber Patchcord Thread Type: C-Mount Function: Optic Mount (Fixed) Fiber Connection: FC/APC
Regulatory Compliance RoHS: Compliant Certificate of Conformance: View
