Description

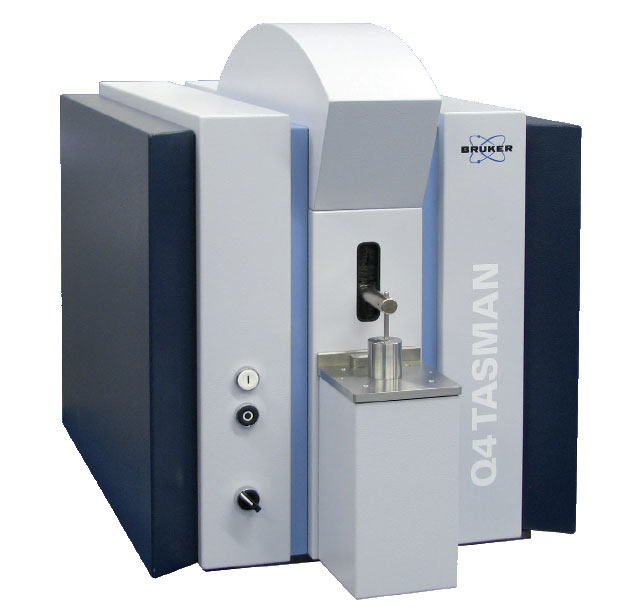

The Bruker Q4 TASMAN Advanced CCD Based Optical Emission Spectrometer for Metal Analysis provides accurate and fast measurements by using the latest state-of-the-art technologies. Bruker’s innovative solutions make the Q4 TASMAN OES system entirely suitable for a variety of applications.
SHORTER MEASUREMENT TIMES
Compared to any other conventional system, the Q4 TASMAN features shorter measurement cycles. The Q4 achieves this through performing readout scans on CCDs up to 30 times faster than before. Overall, users will attain higher dynamic ranges with shorter measurement times to improve efficiency and profitability.
COMPETITIVE ATHLETE AT HEART
The optical system is an important part of a spectrometer, which is why Bruker uses ClearSpectrum technology in its Paschen-Runge mounting. The combination of high-resolution CCDs with the latest firmware provides outstanding measurement from a compact design. Spectra deconvolution and evaluation are covered by a duo of firmware and software. Users are only required to place the sample in position and press the start button!
GOAL ORIENTED
Co-axial argon flow puts the gas at the burn spot, eliminating the need for a standby flow. In addition, when applying adapters, you can analyze small samples and wires.
ANALYTICAL SOLUTION PACKAGES
The Q4 TASMAN offers a dedicated solution for all of your analytical tasks. Analytical Solution Packages (ASP) are available per:
- Matrix
- Elements
- Calibrations
- Alloys
- Many more
THREE MODELS FOR YOUR APPLICATION
- Q4 TASMAN 200 – Suited for all non-ferrous applications where UV elements are not required.
- Q4 TASMAN 170 – For ferrous applications with important elements in the UV spectral range (C, P, S, As, Sn, B, etc.).
- Q4 TASMAN 130 – The most powerful model of the series, it is capable of analyzing even deep-UV elements like nitrogen, oxygen.
Технические характеристики
Specs
| Technical Data | |
| Optical System | Multi-detector optics Robust Paschen-Runge mounting ClearSpectrum technology Highest spectral sensitivity |
| Models | Q4 TASMAN 200 &lambda,: 200 — 620 nm Q4 TASMAN 170 &lambda,: 170 — 620 nm Q4 TASMAN 130 &lambda,: 130 — 620 nm |
| Source Generator | Maintenance-free, two phase PWM generator Frequency 50 to 1000 Hz Discharge time from 10 &mu,s to 2 ms |
| ELEMENTAL.SUITE | Intuitive Windows based software for simple routine operation Various user levels for secure and task-specific operation Functions for qualitative and quanitative analysis: ELEMENTAL.SUITE OES software including analysis database and interfaces to Microsoft Office software Quality libraries with version control |
| Analytical Solution Packages (ASP) | Available for all common matrices All relevant alloying elements Calibrations for all grade/alloy groups |
| Electrical Data | 100 to 240 V (50/60 Hz) 600 W during measurement, 50 W standby 16 A (240 V) slow blow fuse or 25 A (100 V) slow blow fuse |
| Weights and Dimensions | Width 540 mm / 21.26 inch Height 685 mm / 26.96 inch Depth 820 mm / 32.28 inch Weight ~ 75 kg / ~165 lbs |
