Description
Description:

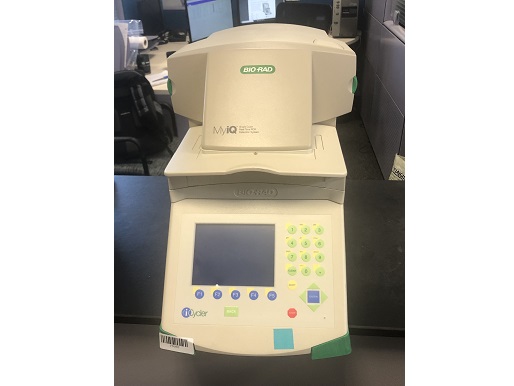

The MyiQ real time PCR detection system offers an affordable solution for the detection of common fluorescent green dyes such as FAM and SYBR Green I. This system interfaces directly with the iCycler thermal cycler, offering superior features such as thermal gradient capabilities and Peltier-effect driven performance.
Specifications:
- Temperature Range: 4 – 100℃
- Temperature Uniformity: ± 0.4℃
- Heated Lid Temperature: up to 100℃
- Gradient Mode
- Gradient Accuracy: ± 0.4℃
- Row Uniformity: ± 0.4℃
- Gradient Range: 40 – 100℃
- Sample Capacity: 96 Wells
- Sample Size: 15 – 100 µl
- Dimensions (W x D x H): 29.2 x 58.4 x 38.7 cm
- Fluorescence Excitation Range: 475 – 495 nm
- Fluorescence Detection Range: 515 – 545 nm
- Dynamic Range: 9 orders of magnitude
