Description

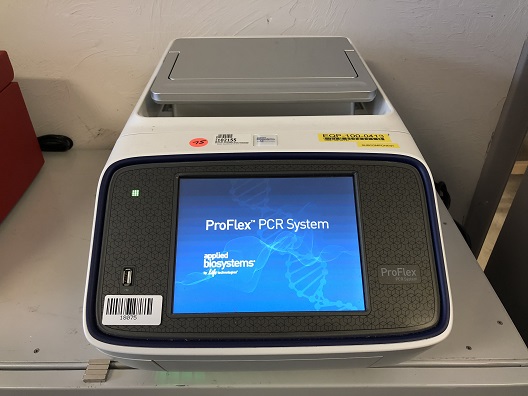

The ProFlex 2x Flat PCR System offers a flexible configuration and control features that adapts to your research. The system is optimized for 24 20K chips for use with QuantStudio™ 3D Digital PCR system and 8 TaqMan OpenArray Genotyping plates. The product also features remote system access via a mobile app, PCR optimization with VeriFlex blocks, and interchangeable block types.
Specifications:
- Maximum block ramp rate: 1.60°C/sec
- Temperature Accuracy: ±0.25°C (35 to 99.9°C)
- Temperature range for protocol run: 0°C to 100.0°C
- Dimensions (Height x Width x Depth): 27.2cm x 33cm x 56.5cm (10.7″ x 13″ x 22″)
- Wight: 19.6kg (43.2lb)
- PCR Volume Range: lesser than 1 micro-liter
- Instrument Memory: USB, on-board
- Display Interface: 8/4″ color TFT LCD
- Power: 100-240 V, 50-60 Hz Max: 950 W, Max Current: 12 A
- Humidity: 15% – 80% Relative Humidity, non-condensing
- Operating Temperature: 15°C to 30°C
