Description

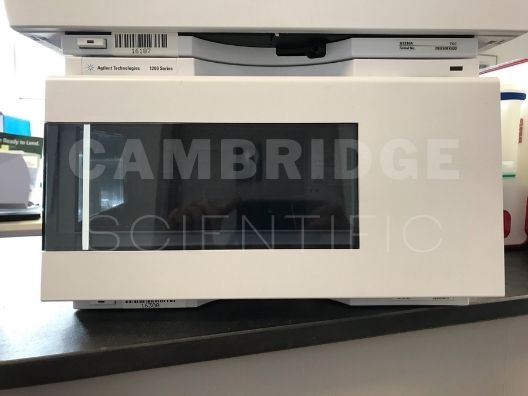

The Agilent 1200 Series autosampler is designed for use with other modules of the Agilent 1200 Series LC system or with other LC systems if adequate remote control inputs and outputs are available. The autosampler is controlled from the Agilent 1200 Series control module or from the Agilent ChemStation
for LC systems.
Specifications:
- Weight: 15.5 kg (34.2 lbs)
- Dimensions (height × width × depth): 200 × 345 × 440 mm (8 × 13.5 × 17 inches)
- Line voltage: 100 – 240 VAC, ±10 % Wide-ranging capability
- Line frequency: 50 or 60 Hz, ±5 %
- Power consumption (apparent power): 300 VA Maximum
- Power consumption (active power): 200 W Maximum
- Ambient operating temperature: 4 to 55 8C (41 to 131 8F)
- Ambient non-operating temperature: -40 to 70 8C (-4 to 158 8F)
- Humidity: <, 95 %, at 25 to 40 8C (77 to 104 8F) Non-condensing
- Operating Altitude: Up to 2000 m (6500 ft)
- Non-operating altitude: Up to 4600 m (14950 ft) For storing the autosampler
